track grid luminaire TRACK48 LINE+ ON-OFF 22CM TILT swivelling, switchable IP20, black

High-Quality LED Grid Luminaire TILT for TRACK48 Rail System

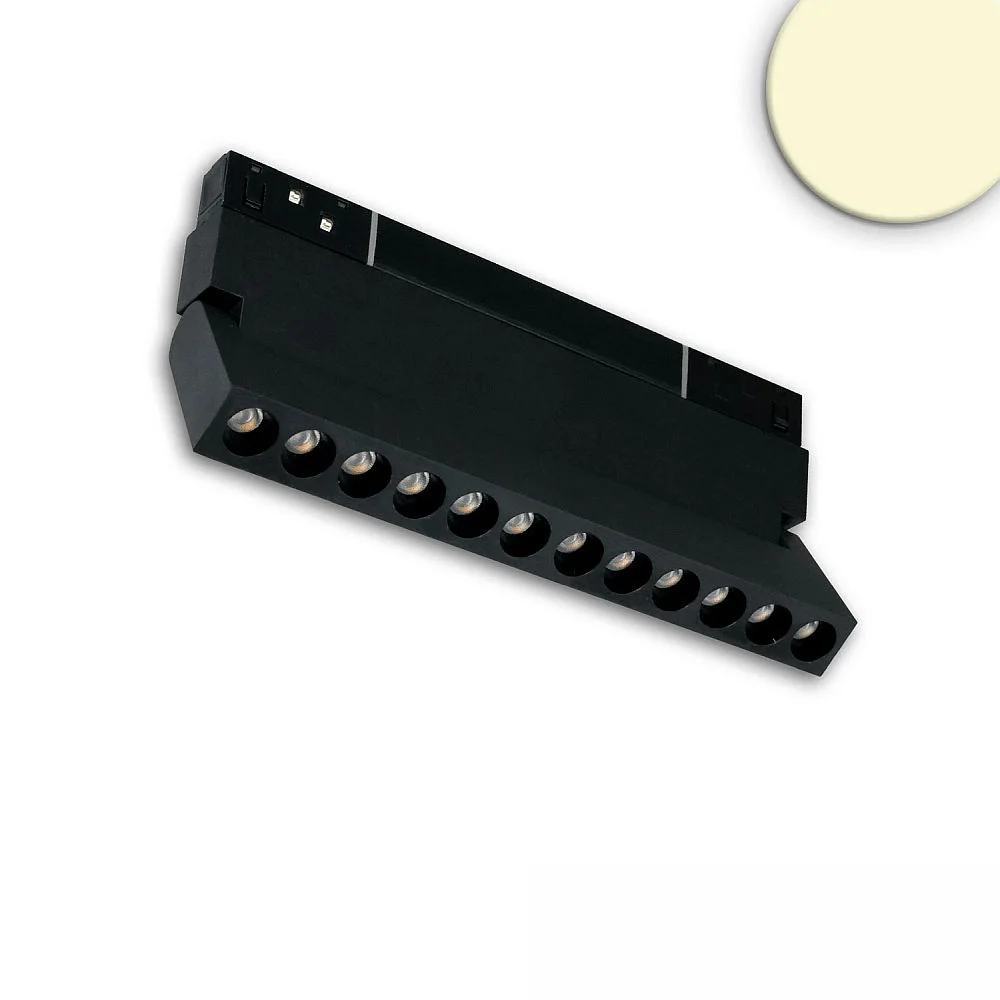

The LED grid luminaire TILT with a length of 22 cm is specially designed for the TRACK48 low-voltage rail system from ISOLED. With a power rating of 12 watts and a warm white color temperature of 3000K, this luminaire provides pleasantly bright and cozy light. Thanks to the integrated grid lens optics, the LEDs are recessed inside the housing, enabling uniform and glare-free illumination. The luminaire features an elegant matte black finish and is made of robust aluminum and plastic, giving it a long service life and a modern appearance.

Efficient and Comfortable Lighting with High Color Rendering

The TILT LED grid luminaire impresses with very good color rendering, boasting a CRI value above 90Ra, which ensures natural and vivid color representation. Particularly advantageous is the low glare effect with a UGR value below 19, making it ideal for workstations with screens. The beam angle of 36 degrees provides targeted and direct light distribution, while the symmetrical light output with the 90° pivotable optics can be flexibly adapted to various requirements.

Easy Installation and Safe Operation with 48V Low Voltage

The LED grid luminaire can be installed tool-free and flexibly thanks to the integrated magnetic adapter, which allows quick attachment to the TRACK48 rail system. Operation is carried out with a safe and voltage-constant 48V DC low voltage, making handling particularly safe. The scope of delivery includes both the magnetic adapter and through-wiring, while the power rail and driver are available separately. With a power factor of 0.95, the luminaire also operates efficiently and reliably.

Durability and Energy Efficiency for Sustainable Use

With an average lifespan of up to 50,000 hours, the LED grid luminaire TILT offers a long-lasting and low-maintenance lighting solution. The luminous efficacy is 73 lumens per watt, indicating high energy efficiency. Energy consumption is only 12 kWh per 1,000 operating hours, making the luminaire a sustainable choice from an ecological perspective. Furthermore, the luminaire is suitable for operation on emergency power systems, providing additional safety during power outages.

Versatile Applications and Technical Details

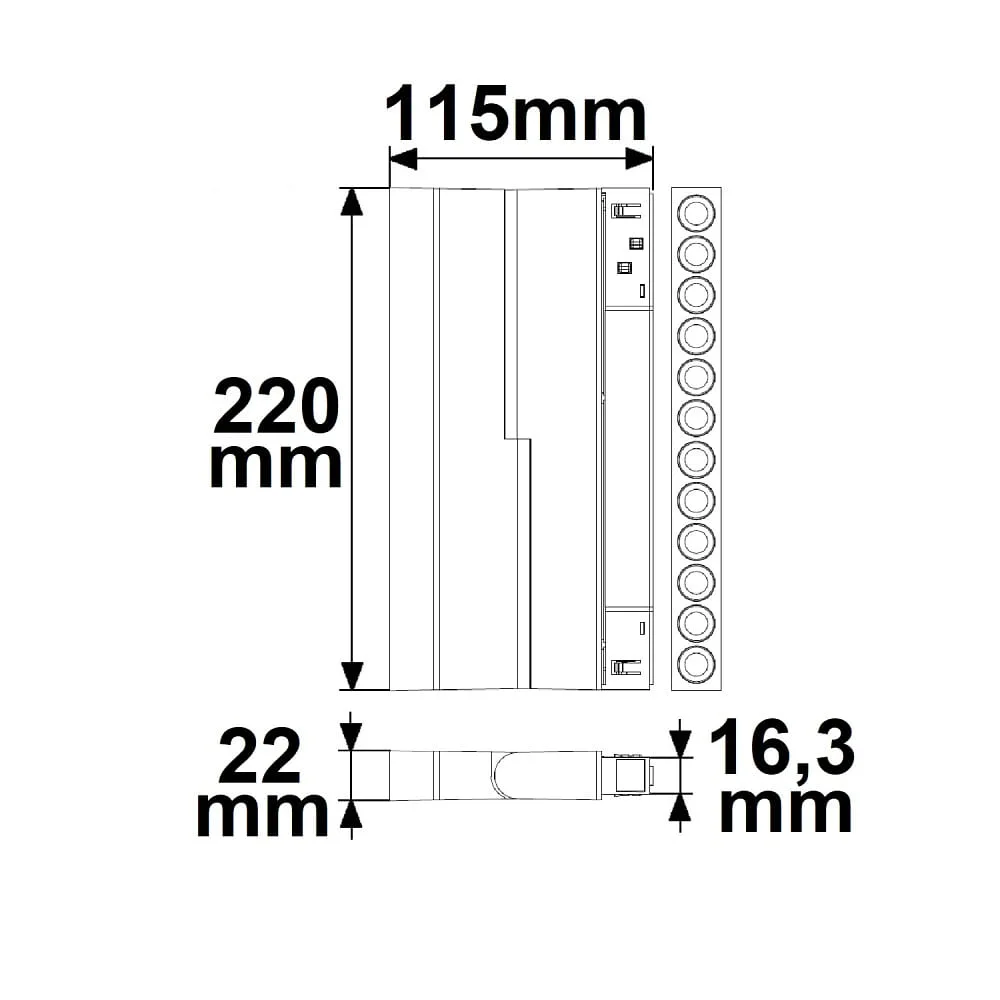

The LED grid luminaire is designed for use on ceilings and walls and is ideal for demanding lighting situations where precise and comfortable light distribution is important. With an IP20 protection rating and an ambient temperature range from -10 to +40°C, the luminaire is robust and reliable. Its compact dimensions of 22 x 2.2 x 10.5 cm and light weight of 0.552 kg facilitate integration into various room concepts. The luminaire is available in different versions and control types, allowing optimal adaptation to individual requirements.
