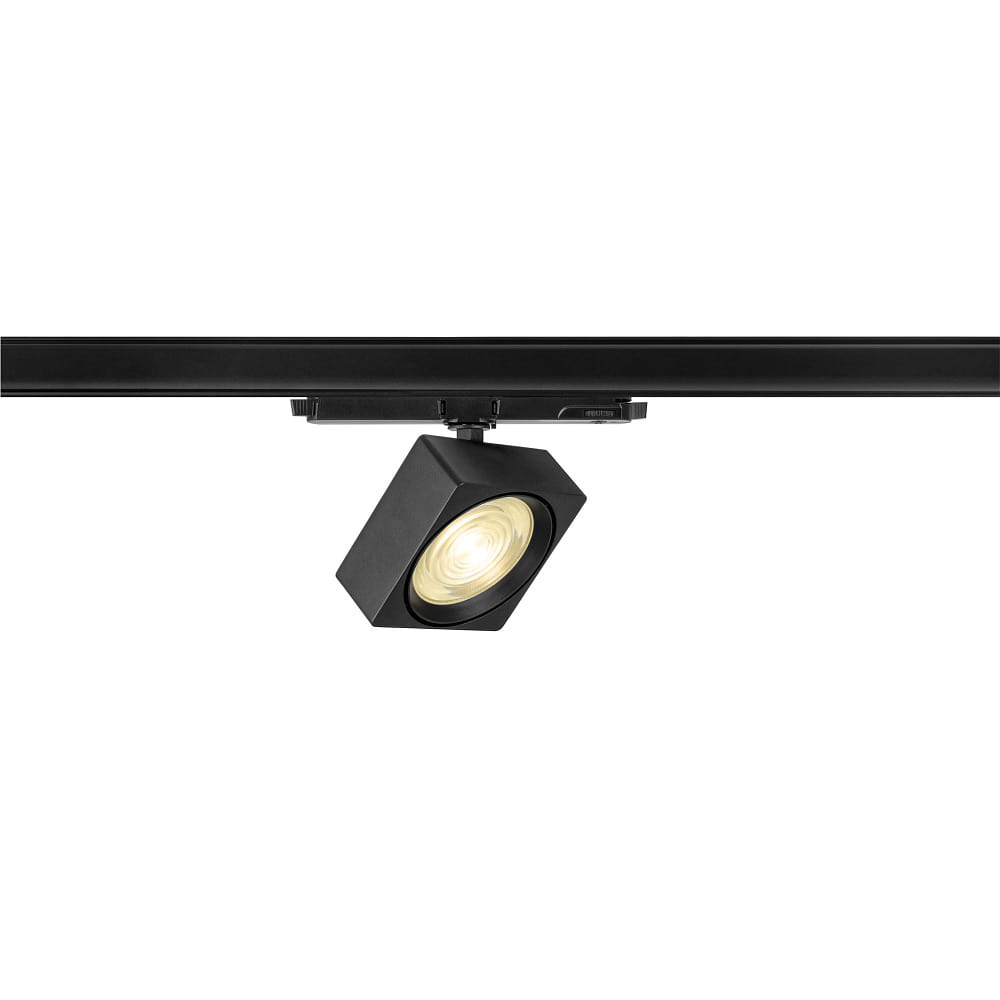

3-phase spot EURO CUBE 2 L DALI flat, square, DALI controllable, UGR < 19, cardanic IP20, black dimmable

SLV



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED 3-Phase Spotlight for Precise Lighting

The LED 3-phase spotlight EURO CUBE 2 L DALI from SLV impresses with its excellent light quality and state-of-the-art technology. With a color rendering index of over 90 Ra, it ensures a natural and vivid color representation, which is particularly important for the presentation of products and objects. The spotlight features a beam angle of 40°, providing a clearly defined light cone that can be precisely aimed. The gimbal design allows easy rotation and swiveling to optimally position the light.

Energy Efficiency and Long Service Life

With a power consumption of only 21 watts and an impressive luminous efficacy of 130.95 lumens per watt, the EURO CUBE 2 L is very energy efficient. Its service life of up to 50,000 hours guarantees long-lasting use without frequent replacement. The integrated passive heat sink ensures effective heat dissipation, further extending the lifespan of the LEDs. This offers you a sustainable and cost-saving lighting solution.

Intelligent DALI Dimming Function for Flexible Light Control

The spotlight is equipped with a DALI and DALI-2 compatible driver that enables stepless and convenient control of light intensity. This allows the light to be individually adjusted to specific needs, creating a pleasant atmosphere. The current-controlled LED technology ensures consistent light quality and easy integration into existing control systems.

Robust Design and Practical Features

The housing of the spotlight is made of high-quality aluminum in elegant black, which is not only visually appealing but also provides high stability. Weighing only 0.7 kg and with compact dimensions of 11.2 x 14.5 x 19.8 cm, the spotlight is easy to install and flexible to use. Included in the scope of delivery are a 3-phase adapter and the matching driver. Additional accessories such as 3-phase rails or filters are available separately.

Optimal Glare Control and Versatile Applications

The EURO CUBE 2 L meets the requirements for glare-free lighting at computer workstations with a UGR value below 19. The warm white light with a color temperature of 3000 Kelvin creates a pleasant and inviting atmosphere. Protection class 2 and IP20 certification guarantee safe usage. Thanks to the possibility for qualified personnel to replace the LED module and driver, the spotlight is particularly sustainable and future-proof.

Colour:
black
Glass color:
clear
Reflector color:
silver

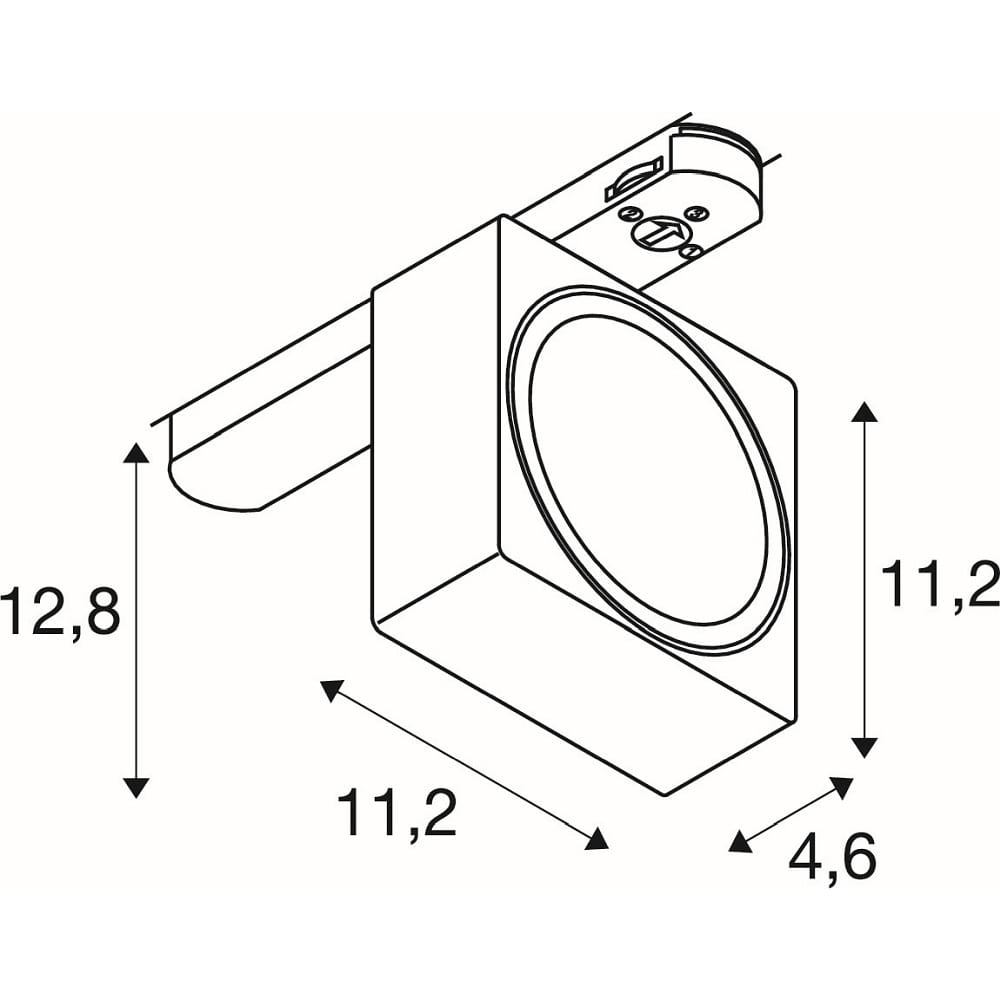

Dimension:
total-B∕ H∕ T: 11,2∕ 14,5∕ 19,8 cm
visible part-B∕ H∕ T: 11,2∕ 11,2∕ 19,8 cm
head-B∕ H∕ T: 11,2∕ 11,2∕ 4,6 cm
light output-Ø: 6,9 cm
adapter-T: 19,8 cm
Material:
aluminium
Weight:
0,7 kg
Product type:
3-phase spot
Accessories:
3-phase adapter - included in delivery
driver - included in delivery
3-phase track - not included in delivery
filter - not included in delivery
honeycomb filter - not included in delivery
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI,DALI-2
Power frequency:
50/60 Hz
Power consumption:
21 W
Emitting angle:
40 °
Voltage:
3-phase adapter
Light colour:
warm white
Beam direction:
swivelling
Light flux:
2750 lm
Light yield:
130,95 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 Std.
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK02 up to 0.20 Joule
Protection class:
2
IP-protection class:
IP20
Additional information:
Notice for the end user: The light source of this luminaire may only be replaced by the manufacturer or by a service technician appointed by him.
System power: 28,5W
High color reproduction
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
D
Energy consumption:
21 kWh/1.000 h
Article number:
1010854
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
