3-phase spot SIGHT PANEL DALI square, rotatable, DALI controllable IP20, white dimmable

Highly Efficient 3-Phase Spotlight with Modern Design

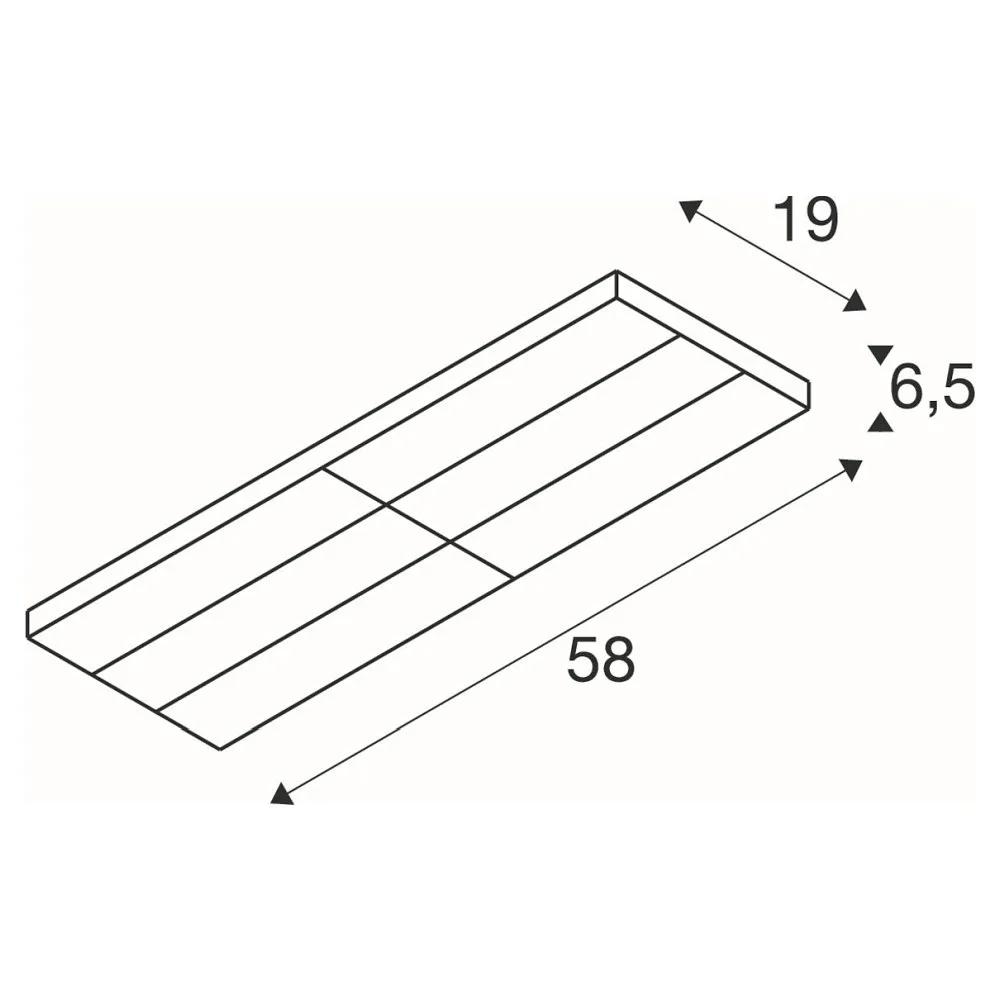

The LED 3-phase spotlight SIGHT PANEL DALI-2 from SLV impresses with its sleek, rectangular design measuring 58x19 cm and a weight of only 2.11 kg. The housing is made of robust aluminum and acrylic glass, ensuring durability and an attractive appearance. The white color blends unobtrusively into many environments. Thanks to the slim design and rotatable construction, the light can be flexibly directed to optimally illuminate targeted areas.

Powerful and Energy-Saving Lighting

With a power consumption of 65 watts and an impressive luminous efficacy of 178.46 lumens per watt, the spotlight provides bright and efficient illumination. The luminous flux amounts to 11,600 lumens at a neutral white color temperature of 4000 Kelvin, which ensures a natural and pleasant lighting effect. The average lifespan of 50,000 hours guarantees long operating times and minimizes maintenance effort. Additionally, the light source consumes only 65 kWh per 1,000 operating hours, sustainably reducing energy consumption.

Precise Light Control Thanks to DALI-2 Dimmability

The SIGHT PANEL DALI-2 spotlight is compatible with DALI-2 and allows stepless brightness adjustment from 38 to 65 watts. This ensures optimal lighting conditions and individual control of the lighting experience. The spotlight features a symmetrical 70° optic that guarantees even and targeted illumination of surfaces and corridors. The light color is neutral white with a high color rendering index of over 90 Ra, ensuring natural representation of colors, packaging, and surfaces.

Flexibility and Easy Integration

The spotlight is equipped with a 3-phase adapter, allowing easy mounting on corresponding rail systems. The light source can be rotated up to 330° horizontally, enabling precise light alignment. The LED driver and LED module are easily replaceable, simplifying maintenance and extending service life. Accessories such as drivers are included in the scope of delivery, while other components like 3-phase rails, controllers, or dimmers are available separately.

Robust and Sustainable Construction for Professional Use

The spotlight is certified according to protection class 1 and features protection rating IP20 as well as impact resistance of IK02, providing a certain level of protection against shocks and vandalism. The operating voltage ranges between 220 and 240 volts at a mains frequency of 50/60 Hz. The sustainable design of the device enables long-term use with low maintenance effort. The SIGHT luminaire series also offers various versions and colors to meet individual requirements in professional environments.
