Cable connector 5 pin cable bushing 8-14mm (M25) for connecting supply lines made of PVC, silicone or rubber

Robust and Versatile Cable Connector for Your Projects

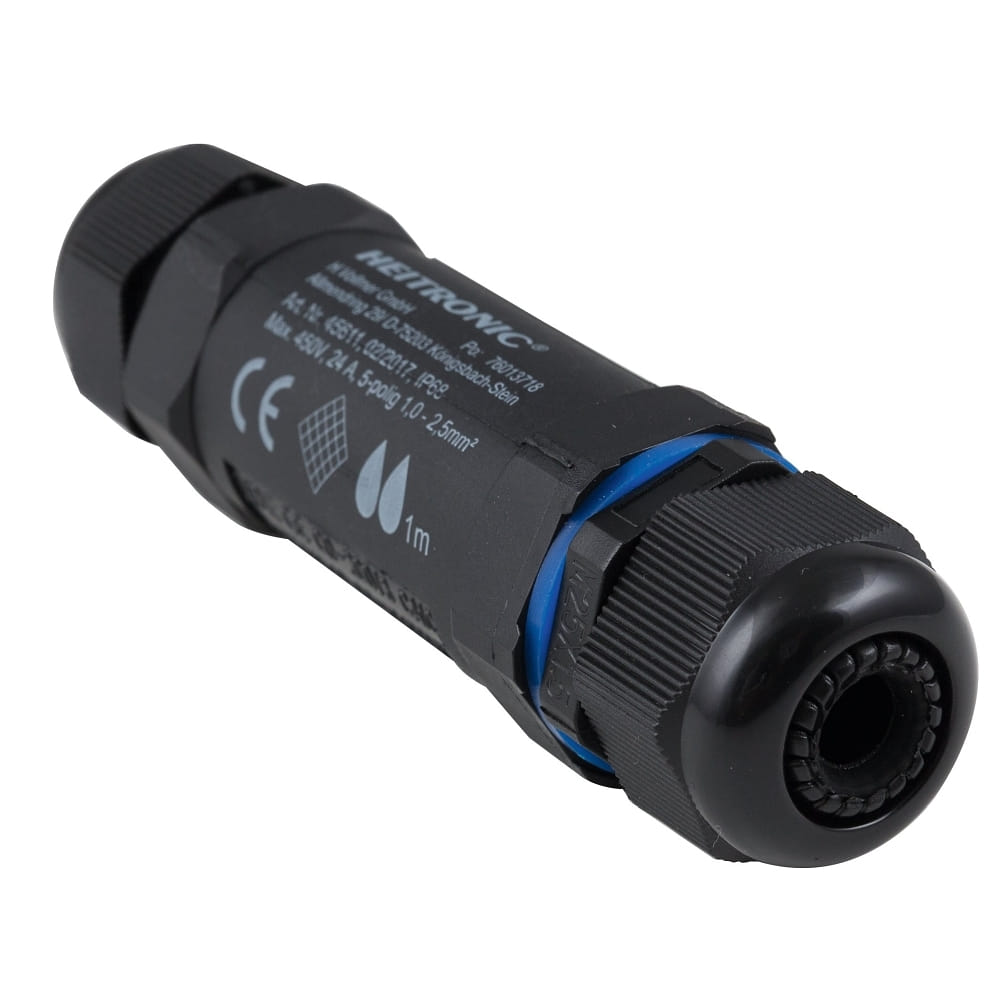

The outdoor cable connector from Heitronic is a high-quality connecting piece specifically designed for cables with a diameter of 8 to 14 mm. With its 5-pole design, it is ideal for quick and secure connection of supply cables with free ends. The product is characterized by its compact size of 13 x Ø 3.2 cm and a light weight of only 58 grams, ensuring easy handling.

High-Quality Materials for Maximum Durability

Made from flame-retardant plastic, fiber-reinforced polyamide PA66, and silicone, the cable connector offers exceptional robustness and longevity. This combination of materials provides excellent resistance to mechanical stress and environmental influences. Additionally, the metal inside ensures stable electrical connections and secure contact guidance.

IP68 Protection Class for Reliable Sealing

With an IP68 protection rating, the cable connector is completely dust- and waterproof. It withstands continuous contact with water up to a depth of one meter, making it optimally protected against moisture and dust. Furthermore, it is frost-resistant and operates reliably within a temperature range of -40 to +105 degrees Celsius, making it a very durable solution.

Technical Details for Safe Power Supply

The cable connector is designed for an operating voltage of 230 to 450 volts and a maximum current load of 16 amperes. It supports a network frequency of 50/60 Hz and is suitable for conductor cross-sections from 0.5 to 1.5 mm². Additionally, it is compatible with underground cables of the type NYY-J up to 5G 1.5 mm², making it flexible for various applications.

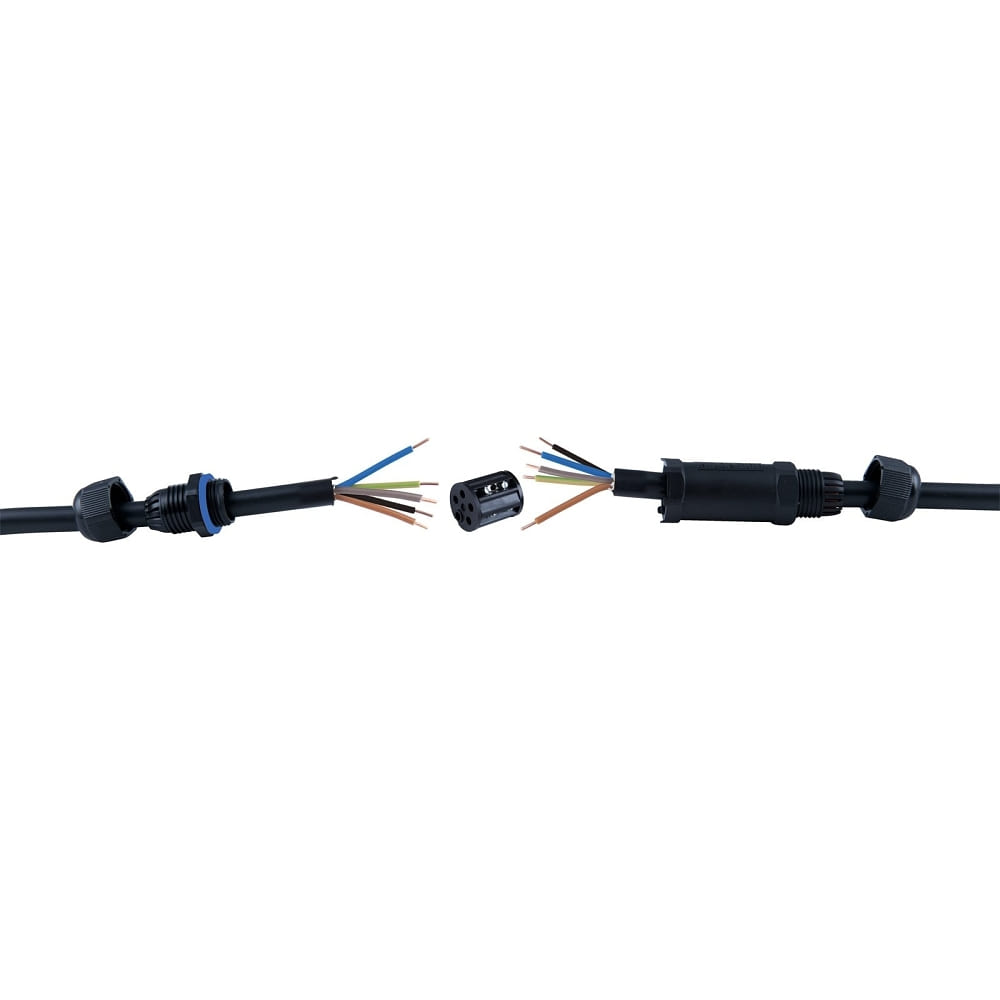

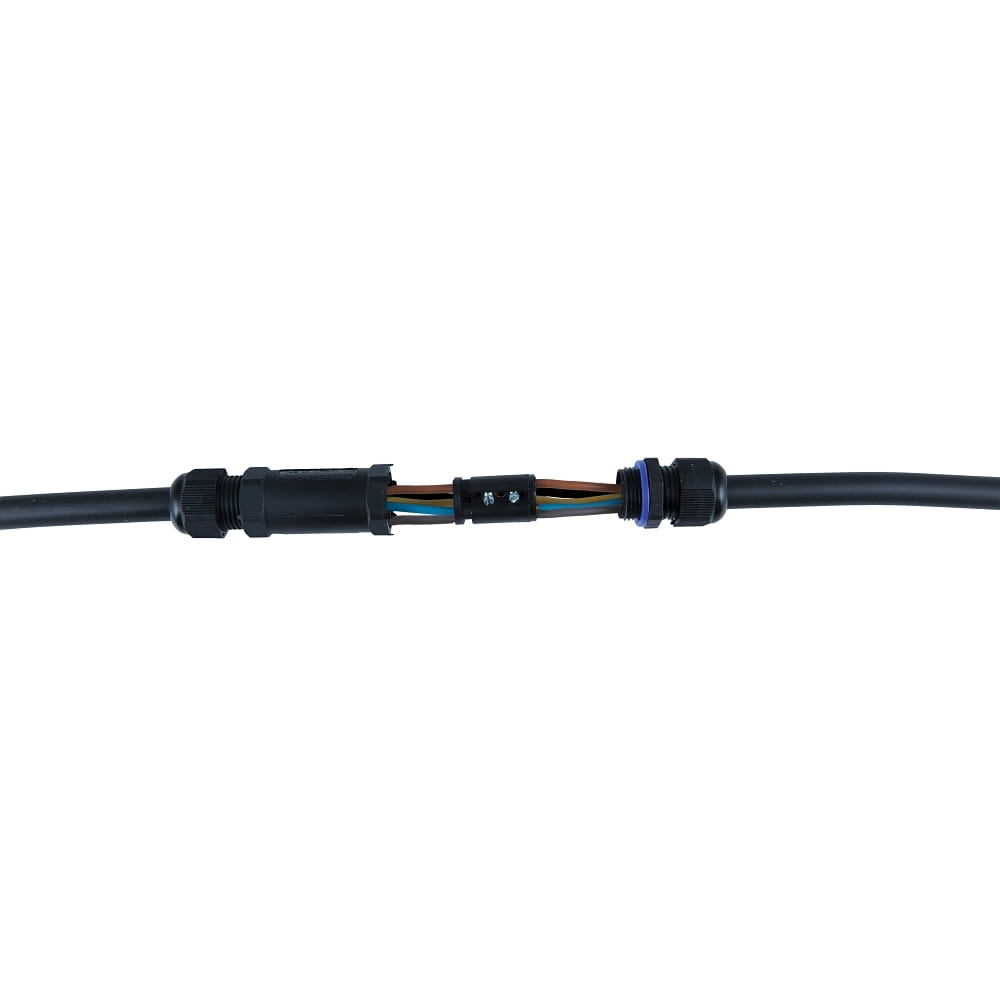

Easy Installation for Quick Use

The connector features one input and one output each, allowing for straightforward connection of cable ends. Thanks to its simple handling, cables can be connected quickly and securely without the need for special tools. This saves time and ensures a reliable electrical connection in numerous areas of application.
