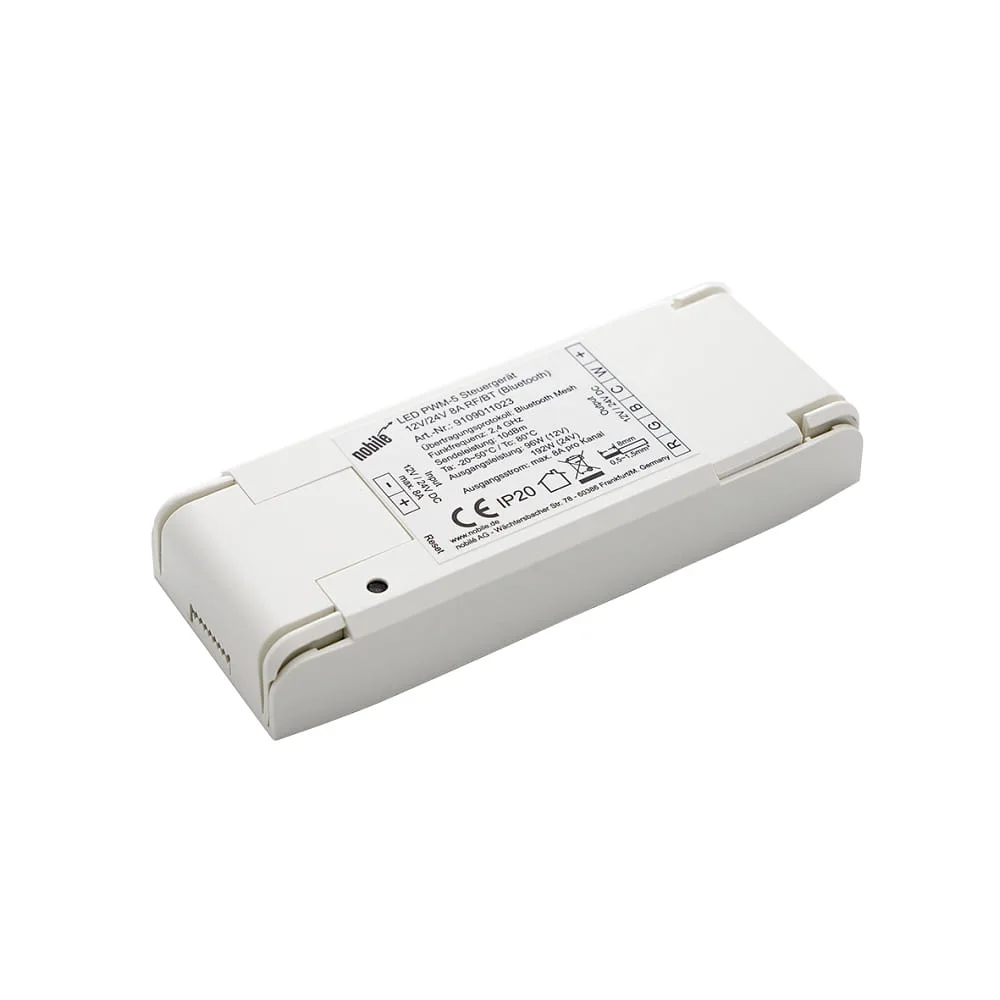

control unit 2.0 PWM-5 12V/24V 8A RF/BT Bluetooth controllable, radio controllable, 5 channel, PWM dimming output, white

Powerful LED Controller with Versatile Control

The PWM-5 LED controller from nobilé impresses with its high performance and flexible control options. With a maximum current capacity of 8 amperes per channel and a total power of up to 192 watts at 24 volts, it ensures reliable power supply for your LED lighting. It supports both 12-volt and 24-volt operating voltages, making it ideal for adapting to various LED systems. The integrated PWM dimming function allows precise control of light intensity and ensures flicker-free lighting.

Modern Radio and Bluetooth Mesh Control

The controller can be conveniently operated via radio (2.4 GHz) and Bluetooth Mesh, enabling flexible control through smart devices. The range of the integrated receiver and mesh transmitter is up to 10 meters, allowing you to easily and comfortably adjust your lighting from a distance. Control is done via the Smartmatic 2.0 app, which offers an intuitive user interface. A wall-mounted remote control is optionally available but not included in the scope of delivery.

Versatile Light Colors and Dimmability

The PWM-5 controller supports various light colors such as Tunable White, RGBW, as well as warm white to cold white. This flexibility allows individual customization of lighting to suit different moods and occasions. The seamless adjustment of light color and brightness is done via pulse-width modulation (PWM), which guarantees smooth dimming without flicker. This way, you can design your LED lighting exactly the way you want it.

Robust Design and Easy Installation

The housing of the controller is made from a combination of plastic and metal, ensuring stability and durability. With compact dimensions of 11.5 x 4.5 x 1.8 cm, the device can be integrated inconspicuously. Connection to the power supply is made via practical terminal clamps, which guarantee safe and easy installation. The controller is designed for operation at ambient temperatures from -20 to +50 degrees Celsius and has an IP20 protection rating.

High Safety and Quality Standards

The nobilé PWM-5 meets numerous EMC and RED standards, including EN 55015, EN 61000-3-2, ETSI EN 300 328, and others, ensuring interference-free operation and electromagnetic compatibility. The maximum temperature of the device is 80 degrees Celsius, guaranteeing safe use. With its high-quality workmanship and modern control options, the PWM-5 LED controller is the perfect solution for demanding LED lighting projects.
