converter PEPA 48V DALI ON/OFF 100W DALI controllable, 4-pole, switchable, black matt

Powerful 48V DALI Converter from Brumberg

The Brumberg PEPA 48V DALI converter is a high-quality device specially designed for low-voltage rail systems. It converts an input voltage of 230V AC into a safe output voltage of 48V DC. With a length of 29.8 cm and a slim, rectangular design in matte black, the converter blends unobtrusively into any lighting system. Protection class 2 and IP20 protection rating ensure safe use under normal environmental conditions.

Easy Installation and Flexible Connection Options

The installation of the converter is designed to be particularly user-friendly. The device is connected to the power grid via a 300 cm long supply cable. On the output side, the connection is made tool-free by simply plugging it into the rail system. This straightforward method allows for a quick and secure connection without much effort. The open cable end on the primary side and the terminal clamp on the secondary side provide flexible mounting options.

High Performance and Long Service Life

The PEPA converter is designed for a maximum current load of 60 amperes and supports a total load of up to 100 watts. This enables the supply of extensive lighting systems with a maximum rail length of 50 meters. The average lamp life is an impressive 50,000 hours, guaranteeing long service life and low maintenance costs. Additionally, the inrush current of 60A with a very short pulse duration of 200 microseconds ensures a smooth start without load peaks.

Versatile Applications in the Low-Voltage Sector

The converter is ideal for the Brumberg 48V rail system PEPA, which includes both flat and high-profile designs. This system allows individual configuration with various LED luminaires, which are sold separately. Since the controller, luminaires, and power rail are not included in the delivery, there is the possibility to flexibly expand and adapt the system as needed. Thus, the device is a perfect basis for modern, energy-efficient lighting solutions.

Technical Details and Accessories at a Glance

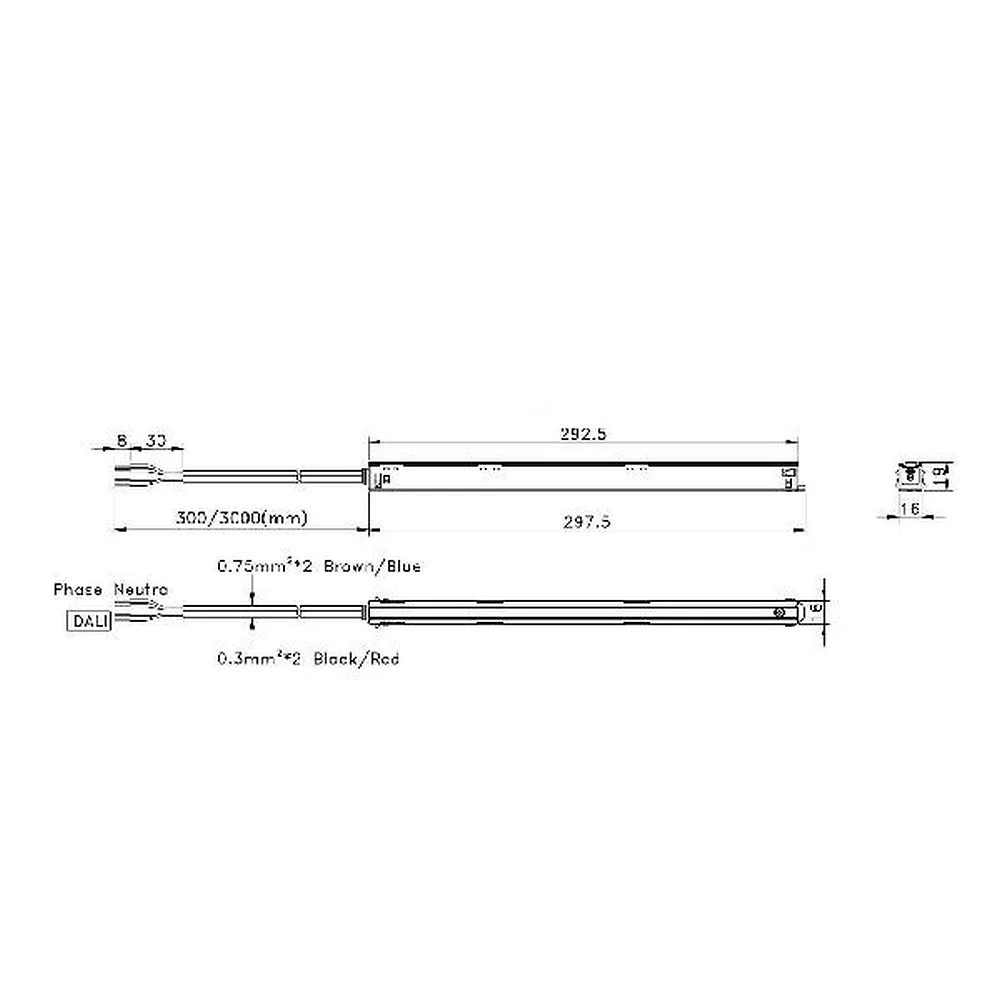

The device weighs only 0.16 kg and measures 29.75 x 1.6 x 1.9 cm (L x W x H), making it compact and space-saving. The delivery includes the connection cable, while other components such as the controller, luminaires, and power rails must be purchased separately. The mains frequency is 50-60 Hz, and the converter operates reliably within a temperature range of -25 to +40 °C. For detailed information, the datasheet and operating instructions are available, explaining all technical aspects clearly.
