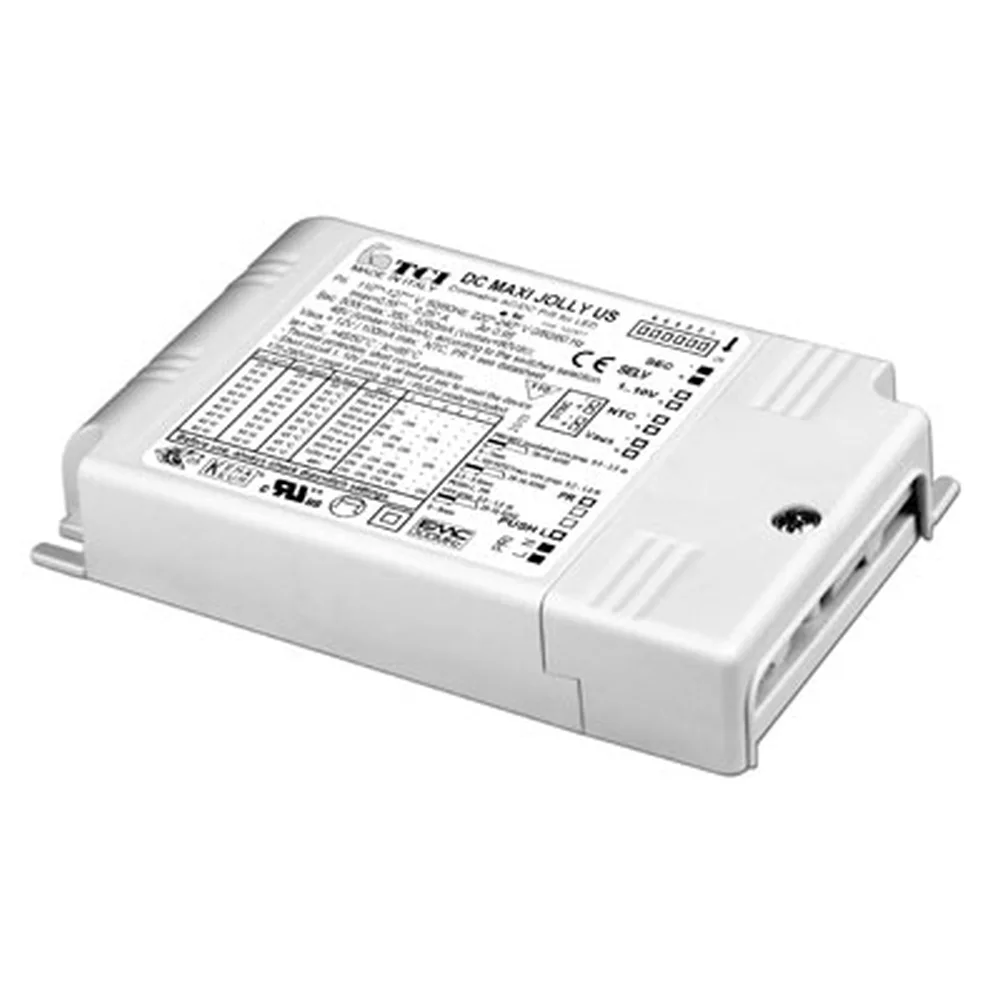

DC MAXI JOLLY US, dimmable multi LED converter 60W - switch / 1-10V AM/PWM

TCI

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

469,05 DKK

excl. Shipping costs / incl. 25 % VAT

Shipping time: 4-5 weeks

Product no.: TCI-127411
EAN: 8010703322943
In stock: 50

We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Dimmable Multi LED Converter DC MAXI JOLLY US 60W - Pushbutton / 1-10V AM/PWM

The dimmable Multi LED Converter DC MAXI JOLLY US 60W is a versatile device that allows a power consumption of up to 60W. With a constant current supply of 350-1050mA, LED lights can be operated efficiently.

KEMA Certified (Netherlands): Yes

This converter is tested and certified according to KEMA standards, confirming its high quality and safety. The color of the device is white and it features a short-circuit window fuse transformer for additional protection.

ENEC Certified: Yes

In addition to the KEMA certification, this converter is also tested according to ENEC standards. This ensures that the device complies with European standards for electrical safety.

Additional Information

The LED converter has various protection functions, including overload protection, overvoltage protection, overheating protection, and short circuit protection. Additionally, it is flicker-free and can be connected with a sync cable to link up to 10 devices together and control them through the first device.

Technical Specifications

The converter has an operating voltage of 230V and is suitable for indoor use. With a protection class 2 and an IP20 protection, it is safe and reliable. The dimensions are 12.4 x 7.9 x 2.2 cm and it weighs 0.15 kg. This device is ideal for indoor lighting and offers a simple and effective way to control and dim LED lights.

Colour:

white

Dimension:

Abmessungen-L∕ W∕ H: 12,4∕ 7,9∕ 2,2 cm

Weight:

0,15 kg

Product type:

converter

Accessories:

potentiometer - not included in delivery
sync cable - not included in delivery

Application area:

only suitable for indoor use

Operating voltage:

230

Dimmable:

yes

Dimmability:

analog 1-10V,PWM dimming,switch dimming

Constant current:

350-1050 mA

Power frequency:

50-60 Hz

Power consumption:

60 W

Bulb type:

LED

Light colour:

white

Maximum lamp wattage:

Permissions for mounting on flamabel surfaces:

Suitable for direct mounting in and on surfaces of unknown flammability

Short circuit protected safety transformer:

yes

Protected by more than 110°C in fault:

yes

Max. current carrying capacity:

1050 A

Suitable for fastening on normal inflammable surfaces:

yes

Mounting:

recessed mounting
surfaced mounting

Protection class:

IP-protection class:

IP20

MM-Sign. Allows the mounting of the luminaire on materials (ex: wood) with unknown inflamation behaviour:

yes

Product KEMA tested (Netherlands):

yes

Product ENEC tested:

yes

Additional information:

Flicker free.
With shortcut circuit protection
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
With shortcut circuit protection
54W 2...72V 750mA
60W 2...70V 850mA
60W 2...66V 900mA
60W 2...60V 1000mA
60W 2...57V 1050mA

ambient temperature:

-20 - +50 °C

Article number:

TCI-127411

Purchasing quantity:

1 piece

Brand:

TCI

Manufacturer:

TCI

Manufacturer information
TCI TELECOMUNICAZIONI ITALIA S.R.L., Via Parma 14, 21047, Saronno, Italy, info@tci-lightshop.it
