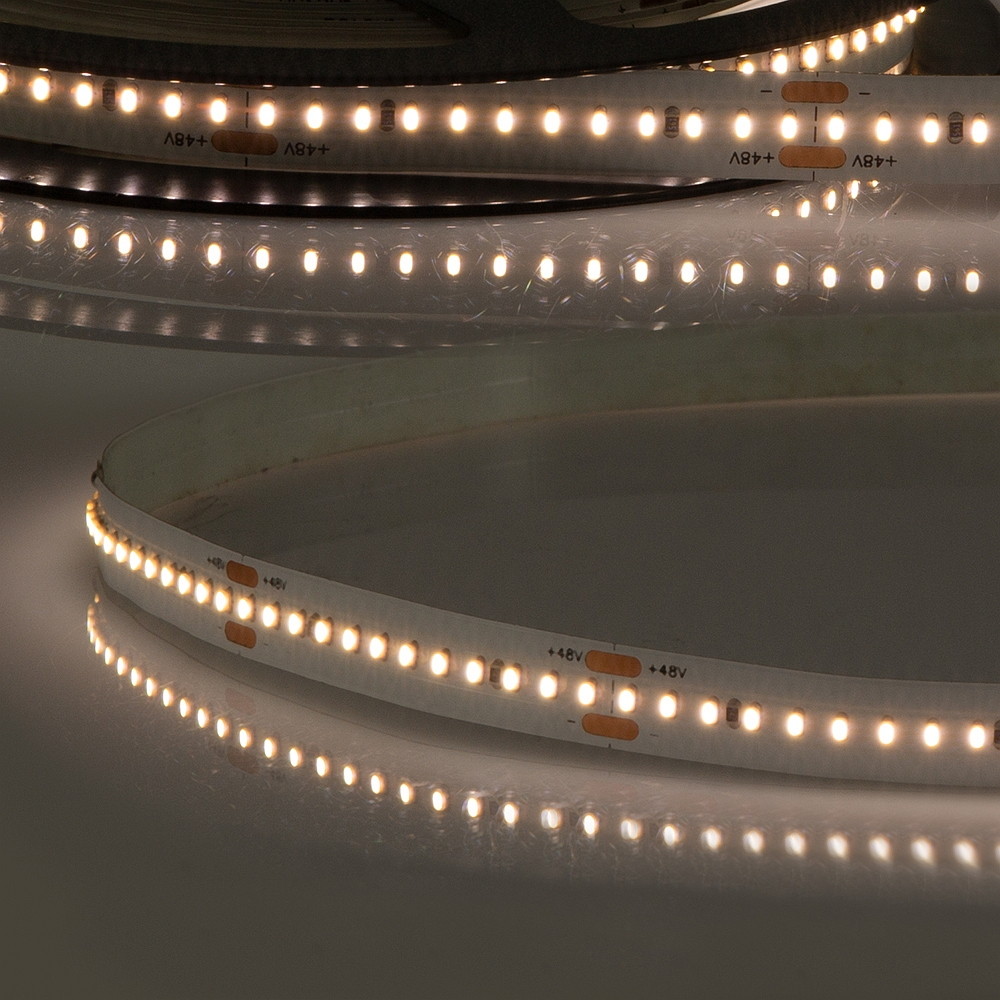

LED CRI930 Linear 48V-Flex strip, 8W, IP20, 3000K

High-Quality LED Lighting with Excellent Color Rendering

The LED Strip CRI930 LINEAR 48V FLEXBAND from ISOLED impresses with outstanding color rendering, featuring a color rendering index (CRI) of 95Ra, which corresponds to grade 1A. This means colors appear especially natural and vivid, making it ideal for applications where color accuracy is important. The warm white light color with 3000K creates a pleasant and cozy atmosphere. With a beam angle of 120°, the light is distributed evenly, ensuring comfortable illumination.

Technical Details and Energy Efficiency

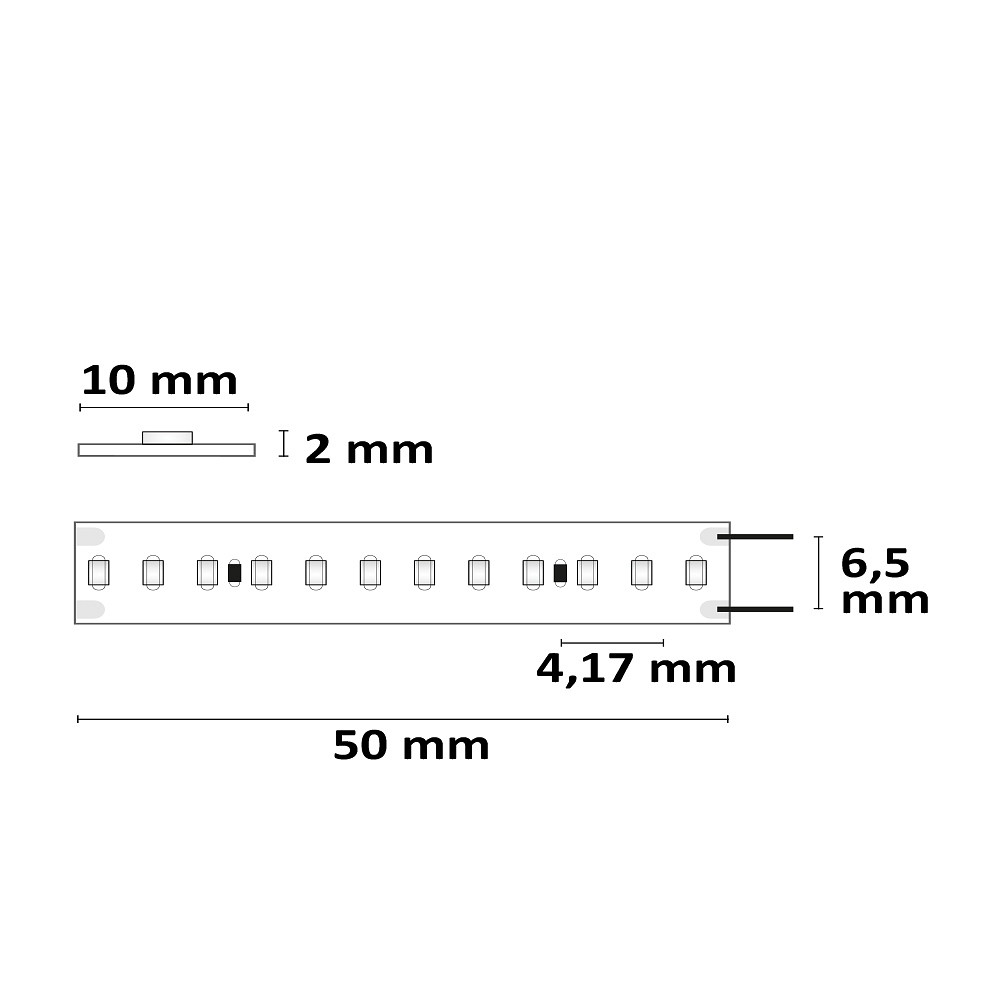

The LED strip has a power consumption of 8 watts per meter and offers a luminous efficacy of 82 lumens per watt, making it very energy efficient. The luminous flux is 700 lumens per meter, providing bright and clear lighting. The operating voltage of 48V DC allows for longer supply lines with reduced power loss compared to LED strips with 12V or 24V operating voltage. The maximum length per power feed is 30 meters, offering flexible usage options. Individual sections can be cut every 5 cm, allowing easy adjustment to different lengths.

Robust Design and Easy Installation

The LED strip is made of high-quality plastic and copper and has protection class 3 with an IP20 rating. It is therefore suitable for dry environments. The self-adhesive backing with 3M 300LSE tape greatly simplifies mounting. Connection is done by soldering, with pre-installed cables on both sides for convenient pass-through wiring. The low weight of only 52 grams per meter makes handling easy and flexible. The minimum bending radius of 5 cm allows for versatile installation options.

Long Lifespan and Reliability

With an average lifespan of up to 70,000 hours, this LED strip is especially durable and reliable. The switching cycles are rated at 100,000, guaranteeing high durability in everyday use. The lifespan specifications are differentiated as L70/B10 with 55,000 hours, L70/B50 with 83,000 hours, and L80/B50 with 72,000 hours, showing that the LEDs maintain high light quality even after long operation. The sturdy construction and high-quality materials ensure lasting performance.

Versatile Accessories and Flexible Use

The scope of delivery includes connection cables and an adhesive backing, which facilitate installation. Covers, dimmers, profiles, connectors, and drivers are available separately, enabling individual adaptation to various application areas. The LED strip can be operated with dimmable PWM technology to control light intensity as needed. The use of a voltage-controlled LED driver with 48V DC is required to optimally power the LED strip. The high number of 240 LEDs per meter guarantees even and intense illumination.
