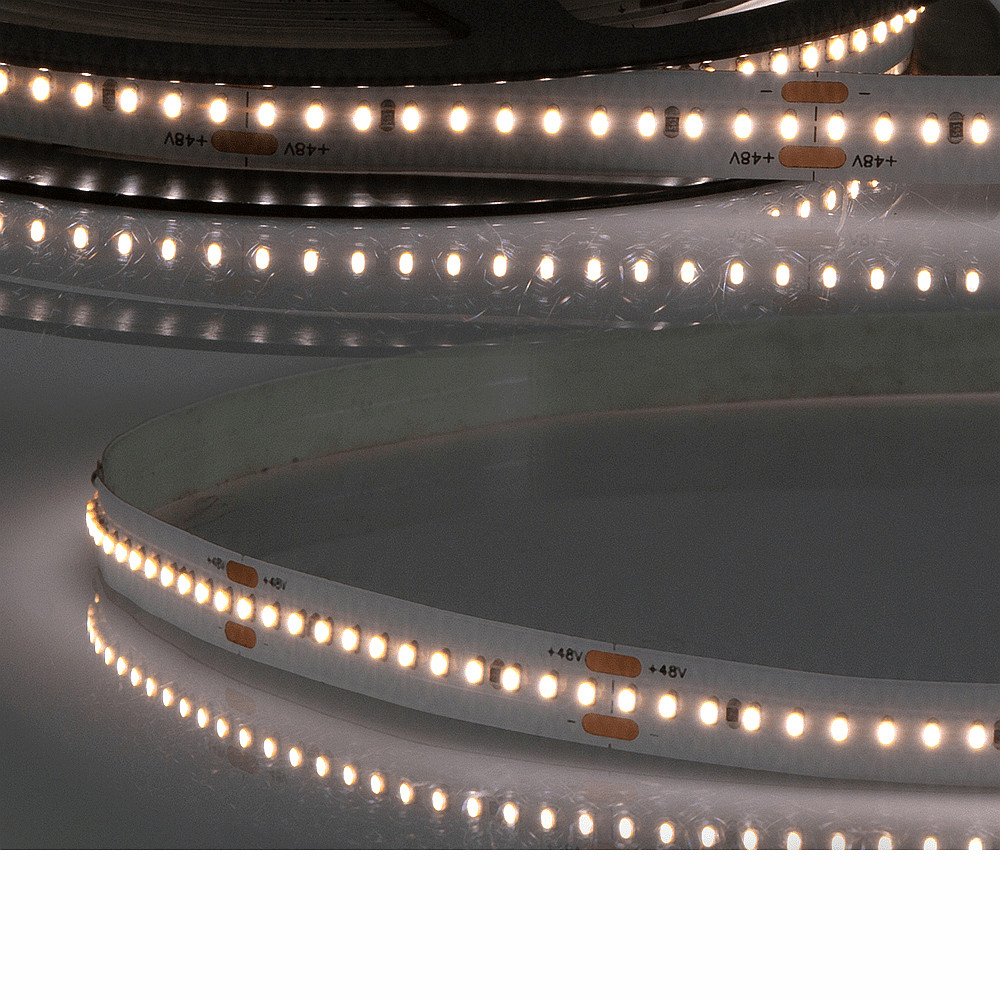

LED CRI940 Linear 48V-Flex strip, 13W, IP20, 4000K, CRi>90, 20 meter

High-Quality LED Strip with Excellent Color Rendering

The LED Strip CRI940 LINEAR 48V FLEXBAND from ISOLED impresses with outstanding color rendering, featuring a CRI of 95 Ra, which corresponds to grade 1A. This high color fidelity ensures natural and brilliant lighting that makes colors appear vivid and authentic. With a neutral white light color of 4000K, the LED strip provides a pleasant and balanced light that is versatile in application.

Technical Details for Efficient Operation

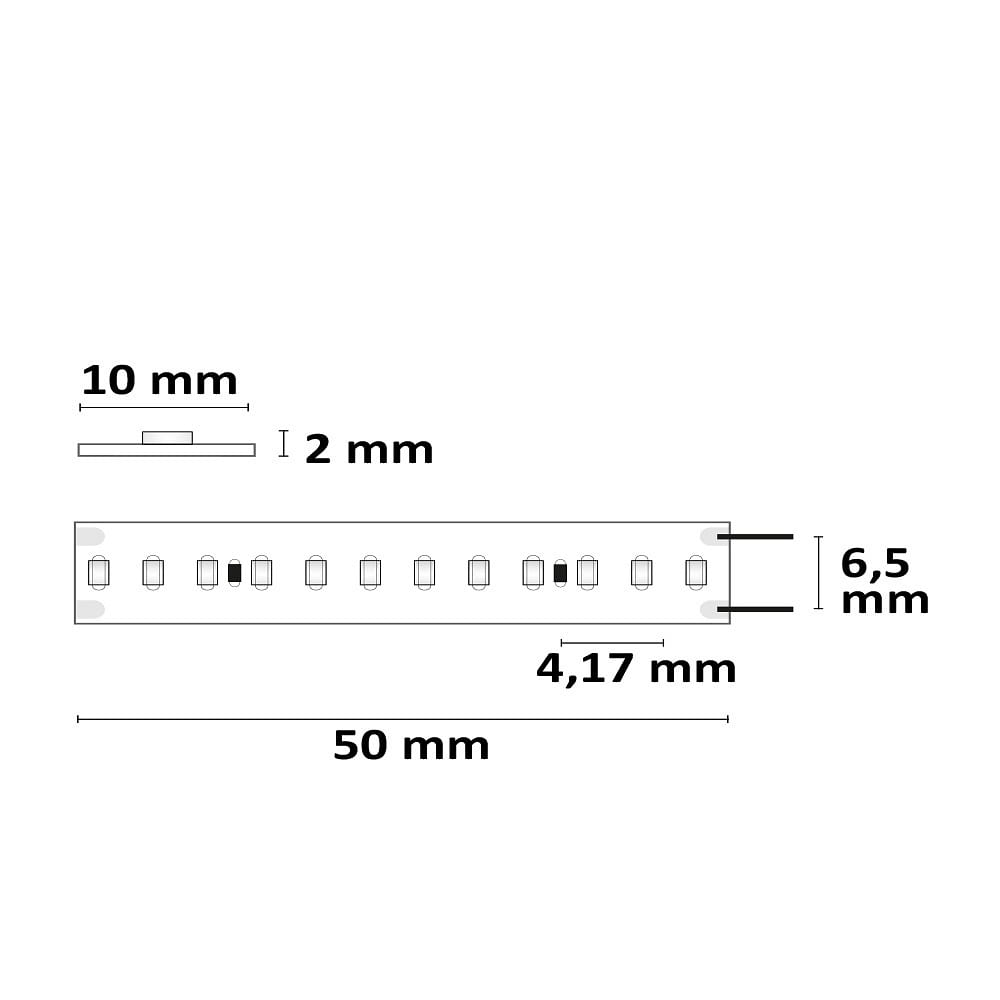

With a power consumption of 13 watts per meter and a luminous flux of 1100 lumens per meter, the LED strip is particularly efficient and delivers a luminous efficacy of 84 lumens per watt. The operating voltage is 48 volts DC, allowing for longer supply lines and reducing voltage drop as well as current flow. The maximum length per power feed is 20 meters, and the strip can be cut every 5 cm, corresponding to 12 LEDs. Installation can be done via recessed or surface mounting, with connection cables pre-installed on both ends.

Durability and Reliability

The average lifespan of the LED strip is up to 70,000 hours, depending on usage intensity. The switching cycles are rated at 100,000, guaranteeing high durability and a long service life. Protection class 3 and IP20 rating make the strip robust against dust and mechanical impacts in dry environments. The material consists of plastic and copper, ensuring a stable and secure construction.

Practical Features and Easy Installation

The LED strip has a self-adhesive backside with high-quality 3M 300LSE adhesive tape, enabling quick and secure mounting. The connection method is either soldering or using suitable connectors from the K2-210 connector group. The product is delivered including connection cables; however, covers, dimmers, profiles, connectors, and drivers are not included. The dimming function is controlled via PWM (pulse width modulation), allowing stepless brightness adjustment.

Flexibility and Versatile Applications

With an LED density of 240 LEDs per meter, the strip ensures even and brilliant illumination. The beam angle of 120° distributes light broadly and harmoniously. The minimum bending radius of 5 cm allows flexible shapes and adaptations to various installation situations. The LED strip is available in different lengths, light colors, and power levels, making it ideal to tailor to individual requirements.
