LED Surface light bar LED 2-Link FLOOD, 90cm, for LED 2-Link-Profile, CRi >95, 16.1W 4000K 930lm 120°, alu anodised

Hera

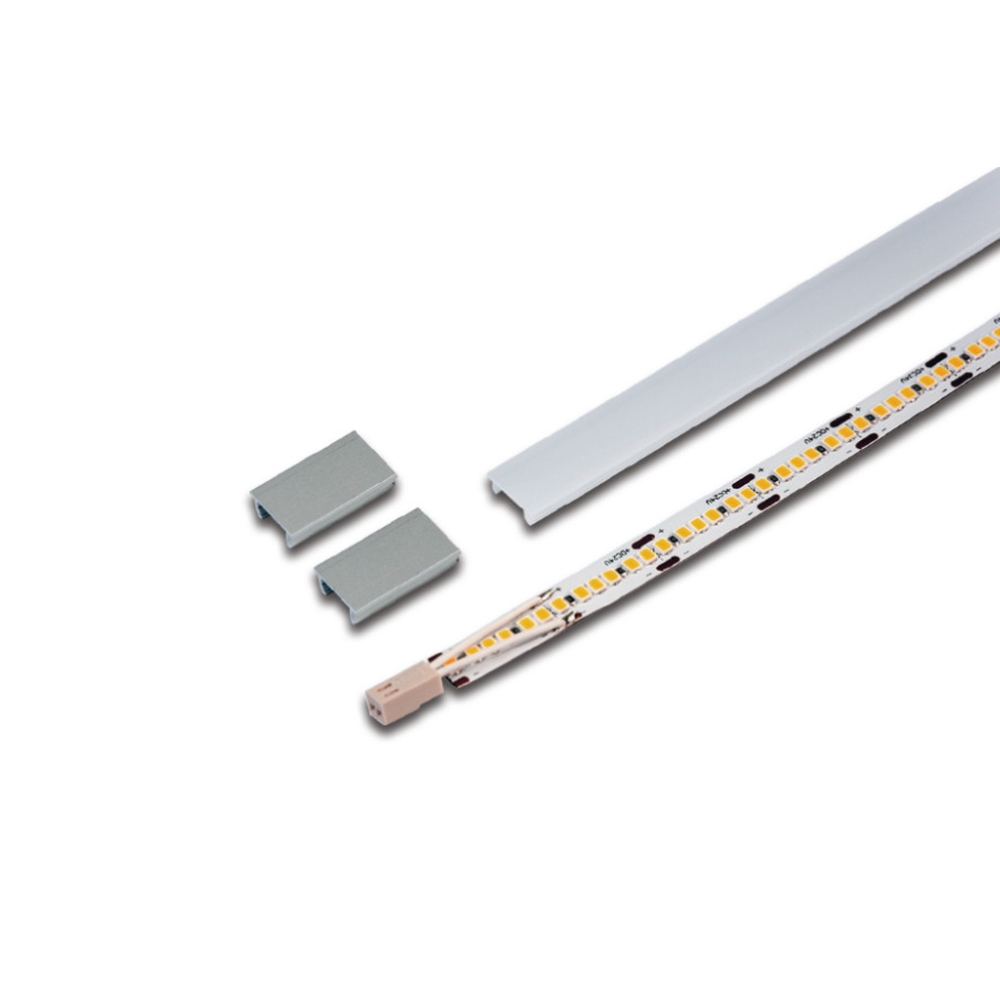

LED area light bar LED 2-LINK FLOOD, 90cm

The LED area light bar LED 2-LINK FLOOD is a high-quality light bar specifically designed for use in conjunction with LED 2-LINK profiles. With a color rendering index of over 95, it offers excellent color reproduction, making it ideal for use in the furniture sector. The light bar has dimensions of 90x1.5x0.8 cm and a power consumption of 16.1W.

Dimmability and light color

Thanks to the appropriate accessories, the LED area light bar is dimmable. It produces neutral white light with a color temperature of 4000K and a luminous flux of 845lm. The light distribution is symmetrical and the beam angle is a generous 120°, ensuring uniform illumination.

Material and installation

The light bar is made of high-quality aluminum and plastic and is suitable for surface mounting. It features an LED-24 plug system as a power connection and can be operated safely thanks to protection class 3. The installation is easy and straightforward.

Additional information and technical details

The LED area light bar has numerous additional features and technical details such as a average lamp life of 60,000 hours, an IP protection rating of 20, and a color rendering grade of 1A. It is not only energy efficient but also safe and durable.

Accessories and product features

The required LED light bulbs are included in the delivery of the LED area light bar. Additional accessories such as operating devices are not included in the delivery. The light bar is suitable for indoor use only and is ideal for illuminating furniture. With its high-quality craftsmanship and modern technology, it is an excellent choice for demanding lighting projects.

Article number:
HE-61002162103
Brand:
Hera
Energy efficiency category:
G
EPREL No:
932823
Product type:
light bar
Manufacturer:
Hera
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Power consumption:
16,1 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
symmetric
Light flux:
845 lm
Light yield:
58 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 Std.
Colour rendering index:
90-100 Ra

1A
Colour:
housing aluminum / cover opal
Material:
housing aluminum / cover plastic
Fitting opening square/rectangular width:
90.00 cm
Fitting opening square/rectangular length:
1,5 cm

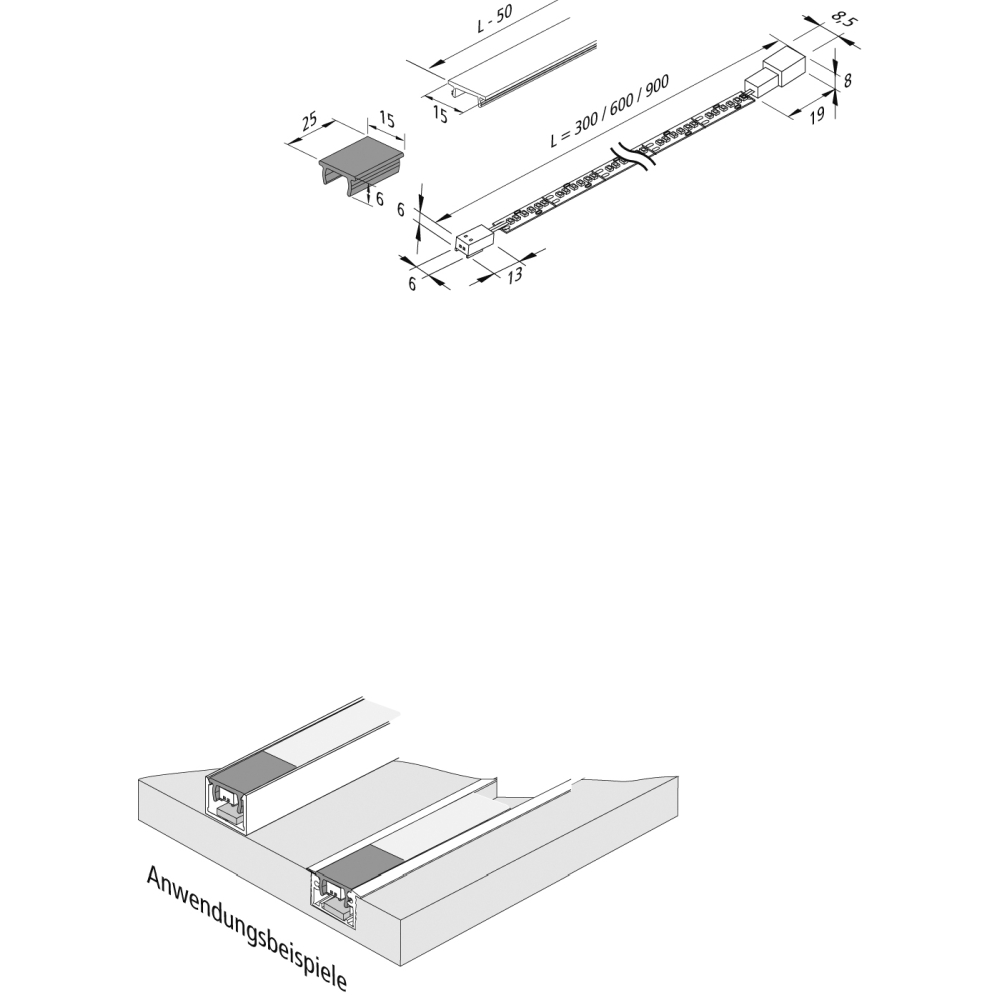

Dimension:
L∕ B∕ H: 90∕ 1,5∕ 0,8 cm
Mounting:
surfaced mounting
Field of application:
furniture
Protection class:
3
IP-protection class:
20
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
control gear excl
ambient temperature:
-5 - 35 °C
