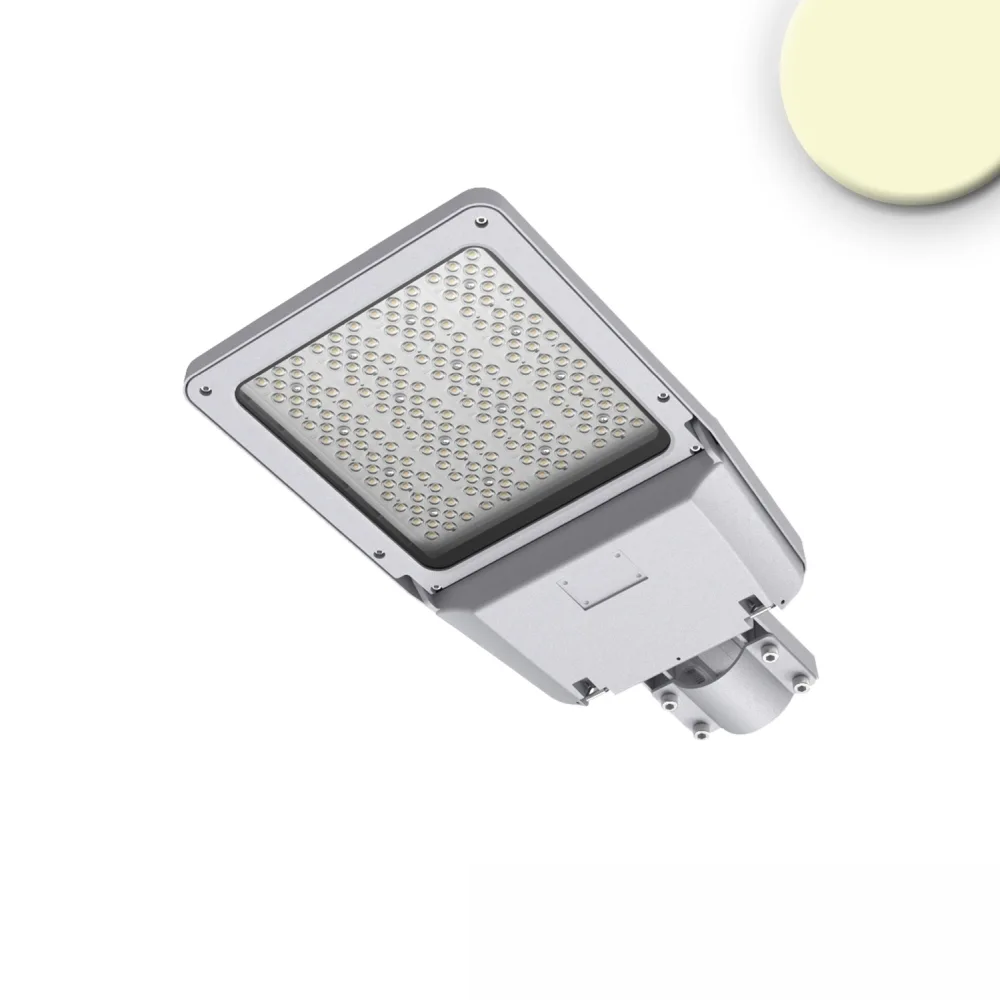

path light STREET LIGHT GR30 square, shockproof IP66, silver dimmable

ISOLED

Article number:
ISO-115086
Purchasing quantity:
1 piece
Brand:
ISOLED
Energy efficiency category:
C
EPREL No:
820490
Product type:
Wegeleuchte
Energy consumption:
30 kWh/1.000 h
Manufacturer:
ISOLED
Operating voltage:
100-277 V~
Dimmable:
yes
Dimmability:
analog 1-10V
Lamp shape:
square
Power frequency:
50/60 Hz
Power consumption:
30 W
Emitting angle:
90.00 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
Lumileds 3030
Light colour:
warm white
Light emission:
direct
Light flux:
4350 lm
Light yield:
145 lm/W
Nominal current:
300-108 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 Std.
Switching cycles:
30000
Colour rendering index:
80-89 Ra

1B
Colour:
silver
Material:
die-cast aluminium

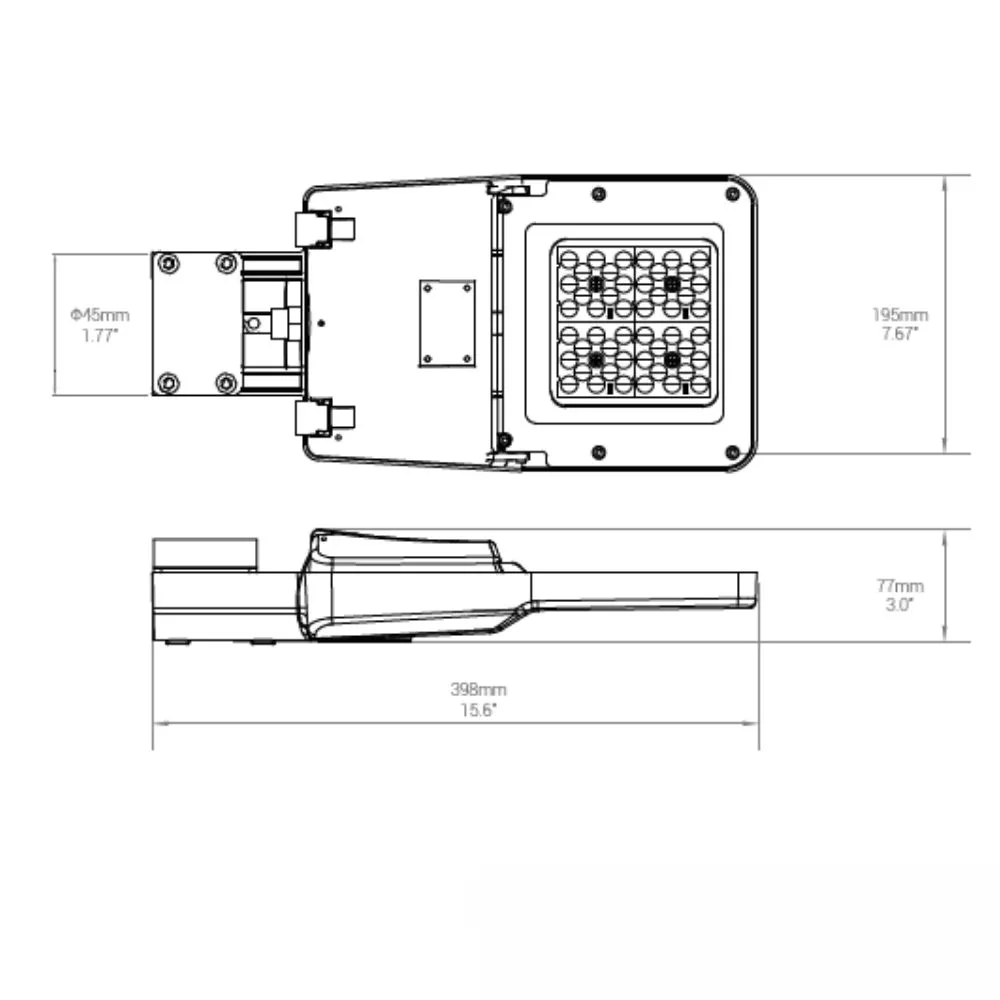

Dimension:
pigtail diameter mast side-Ø: 45 cm

L∕ W∕ H: 39,8∕ 19,5∕ 7,7 cm
Weight:
2,9 kg
Wire/connection lead diameter:
0,75 ² mm
Length of connection lead:
30 cm
Plug type:
clamping connection
Mounting:
mounting accessories required

system based mounting

surfaced mounting
Field of application:
wall

floor
Protection class:
1
IP-protection class:
IP66
Application area:
suitable for outdoor use
Additional information:
Transformer power: 21 VA
Accessories:
adaptor excl

pole excl

connection cable incl

control gear incl
ambient temperature:
-40 ... +50 °C
