recessed downlight LINOO 2.0 2 flames, square, CCT Switch, current constant IP20, white matt dimmable

High-Quality LED Recessed Downlight from Wever & Ducré

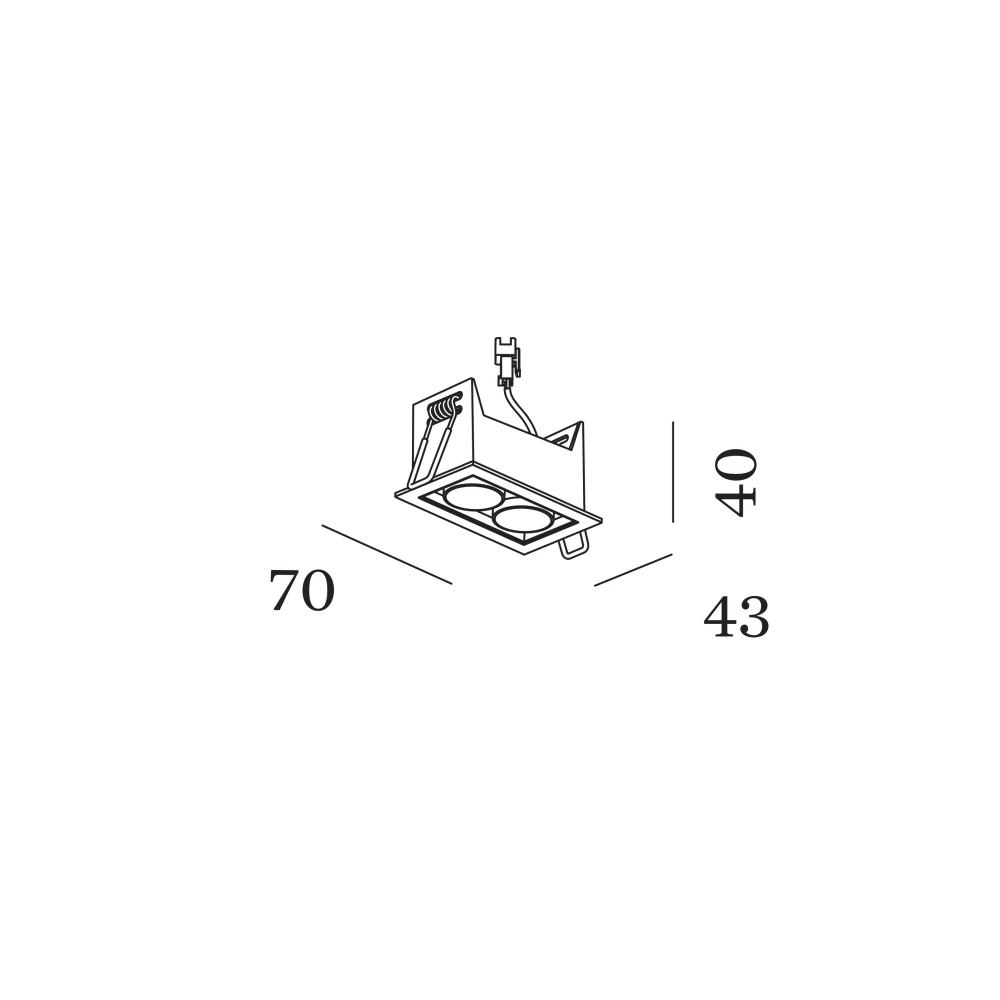

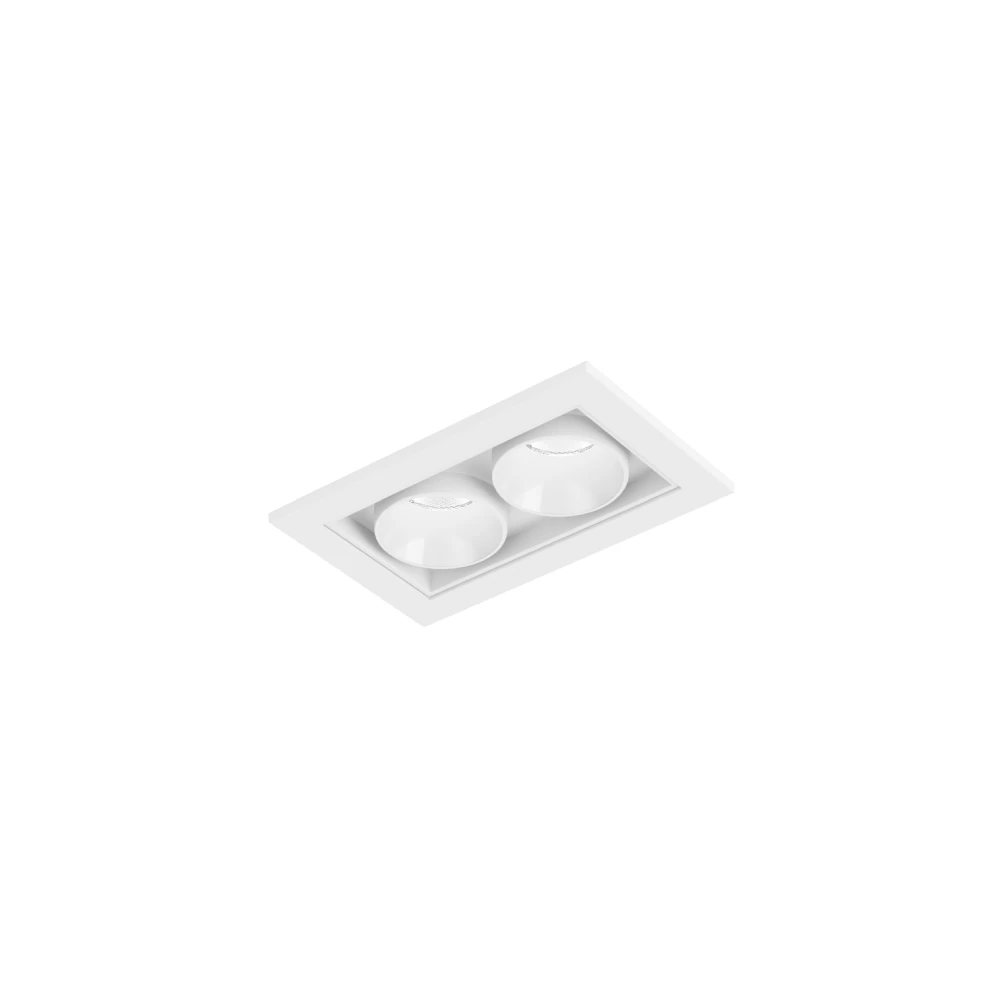

The LINOO CEILING REC 2.0 LED is a compact, square recessed spotlight featuring a matte white die-cast aluminum housing and a glossy polycarbonate reflector. With an installation depth of only 6 cm and dimensions of 7 x 4.3 x 4 cm, the luminaire blends unobtrusively into various ceiling materials. Thanks to the included clip springs, tool-free installation is quick and easy. The low weight of just 0.07 kg further simplifies mounting.

Flexible Light Color and Excellent Color Rendering

The light color of the downlight can be adjusted via a rear DIP switch, offering a choice between extra warm white (2700K) and warm white (3000K). With a color rendering index of over 90 Ra, the luminaire ensures natural and vivid color reproduction, ideal for high-quality object and general lighting. This high color rendering level 1A guarantees that colors are displayed clearly and true to life.

Efficient and Glare-Free Illumination

With a luminous flux of 235 lumens at only 5 watts power consumption, the LINOO CEILING REC 2.0 offers an energy-efficient lighting solution. The beam angle of 35° provides targeted light distribution, while the high glare control (UGR <16) enables use in demanding screen workstations. This ensures comfortable and fatigue-free lighting that meets the requirements of DIN EN 12464-1.

Adjustable Dimming Function and Operating Voltage

The luminaire operates at a 12-volt DC operating voltage and is equipped with a constant current LED module (350mA). The LED driver is not included, giving you the option to select suitable control gear depending on the desired dimming type. Supported models include switchable, phase-cut dimmable, and DALI dimmable units, allowing dimming flexibility tailored to your needs.

Versatile Applications and Accessories

The LINOO CEILING REC 2.0 is versatile, suitable as a ceiling light, downlight, or spotlight, and is also excellent for screen workstations. The scope of delivery includes essential accessories such as clip springs, a light color switch, and plug connectors, ensuring easy and secure installation. For customized lighting control, optional controllers, dimmers, and drivers can be added. The LINOO series also offers additional luminaires in recessed and surface-mounted versions for a consistent lighting concept.
