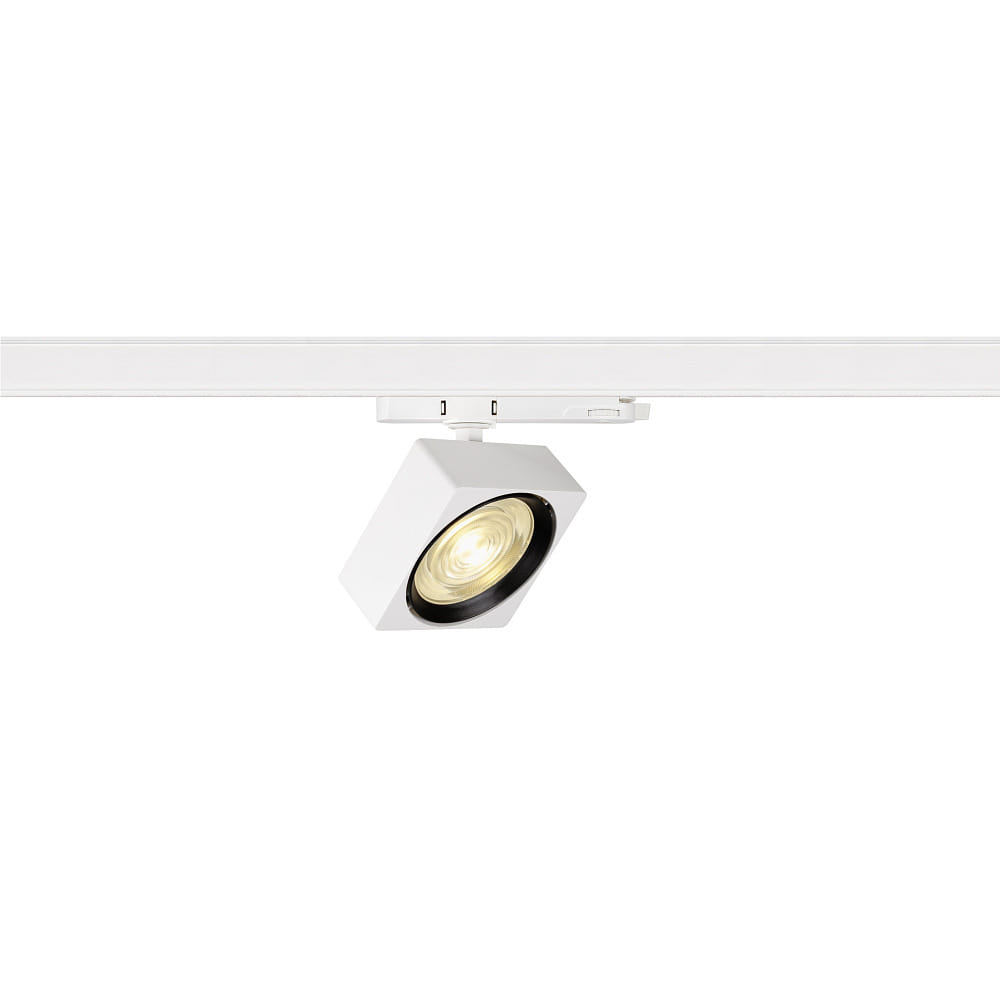

3-phase spot EURO CUBE 2 L PHASE flat, square, UGR < 19, cardanic IP20, black, white dimmable

SLV



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Lighting with Excellent Color Rendering

The LED 3-phase spotlight EURO CUBE 2 L PHASE from SLV impresses with its outstanding color rendering, featuring a CRI value of over 90, which guarantees natural color representation. With a color rendering grade of 1A, it provides particularly accurate and vibrant lighting, ideal for highlighting details. The warm white light color at 3000 Kelvin creates a pleasant atmosphere and is perfect for demanding lighting tasks.

Efficient Light Output and Energy-Saving Operation

With a power consumption of only 21 watts, the spotlight delivers a luminous flux of 2750 lumens and achieves an impressive luminous efficacy of 130.95 lumens per watt. This makes it an energy-efficient solution that reduces electricity costs without compromising brightness. The average lifespan of 50,000 hours guarantees long service life and minimizes maintenance effort.

Flexible Positioning Thanks to Cardan Joint Design

The spotlight is mounted on a cardan joint, allowing precise rotation and swivel functions. This enables optimal alignment of the 40° light cone to set targeted accents or perfectly illuminate specific areas. The glare reduction with a UGR value under 19 ensures glare-free light, which is also comfortable for screen workstations and easy on the eyes.

Robust Design and Easy Installation

Made of high-quality aluminum, the spotlight features a modern, square design available in white with a black inner ring or completely black. With dimensions of 11.2 x 14.5 x 15.8 cm (width x height x depth), the luminaire is compact and unobtrusive. The 3-phase adapter is included in the scope of delivery, facilitating installation on a 3-phase track. The low weight of 0.7 kg additionally ensures easy handling.

Sustainability and Innovative Technology

The spotlight is equipped with an integrated passive heat sink that efficiently dissipates heat, thereby increasing the lifespan of the LEDs. The current-controlled LED driver allows easy phase-cut dimming to adjust the light individually to your needs. Particularly sustainable is the possibility for both the LED module and the driver to be replaced by qualified personnel, further extending the product’s lifespan and conserving resources.

Colour:
black
white
Glass color:
clear
Reflector color:
silver

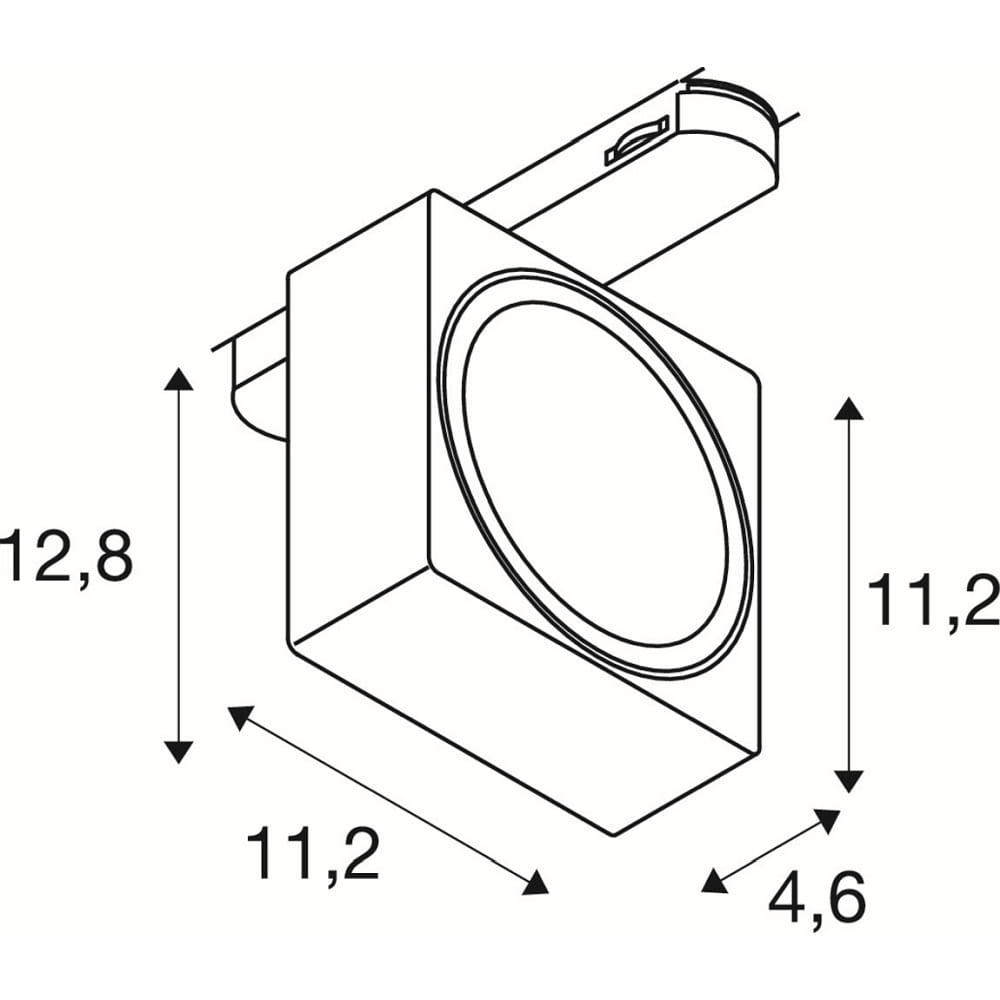

Dimension:
total-B∕ H∕ T: 11,2∕ 14,5∕ 15,8 cm
visible part-B∕ H∕ T: 11,2∕ 11,2∕ 15,8 cm
head-B∕ H∕ T: 11,2∕ 11,2∕ 4,6 cm
light output-Ø: 6,9 cm
adapter-T: 15,8 cm
Material:
aluminium
Weight:
0,7 kg
Product type:
3-phase spot
Accessories:
3-phase adapter - included in delivery
driver - included in delivery
3-phase track - not included in delivery
filter - not included in delivery
honeycomb filter - not included in delivery
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50/60 Hz
Power consumption:
21 W
Emitting angle:
40 °
Voltage:
3-phase adapter
Light colour:
warm white
Beam direction:
swivelling
Light flux:
2750 lm
Light yield:
130,95 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 Std.
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK02 up to 0.20 Joule
Protection class:
2
IP-protection class:
IP20
Additional information:
Notice for the end user: The light source of this luminaire may only be replaced by the manufacturer or by a service technician appointed by him.
System power: 28,5W
High color reproduction
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
D
Energy consumption:
21 kWh/1.000 h
Article number:
1010848
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
