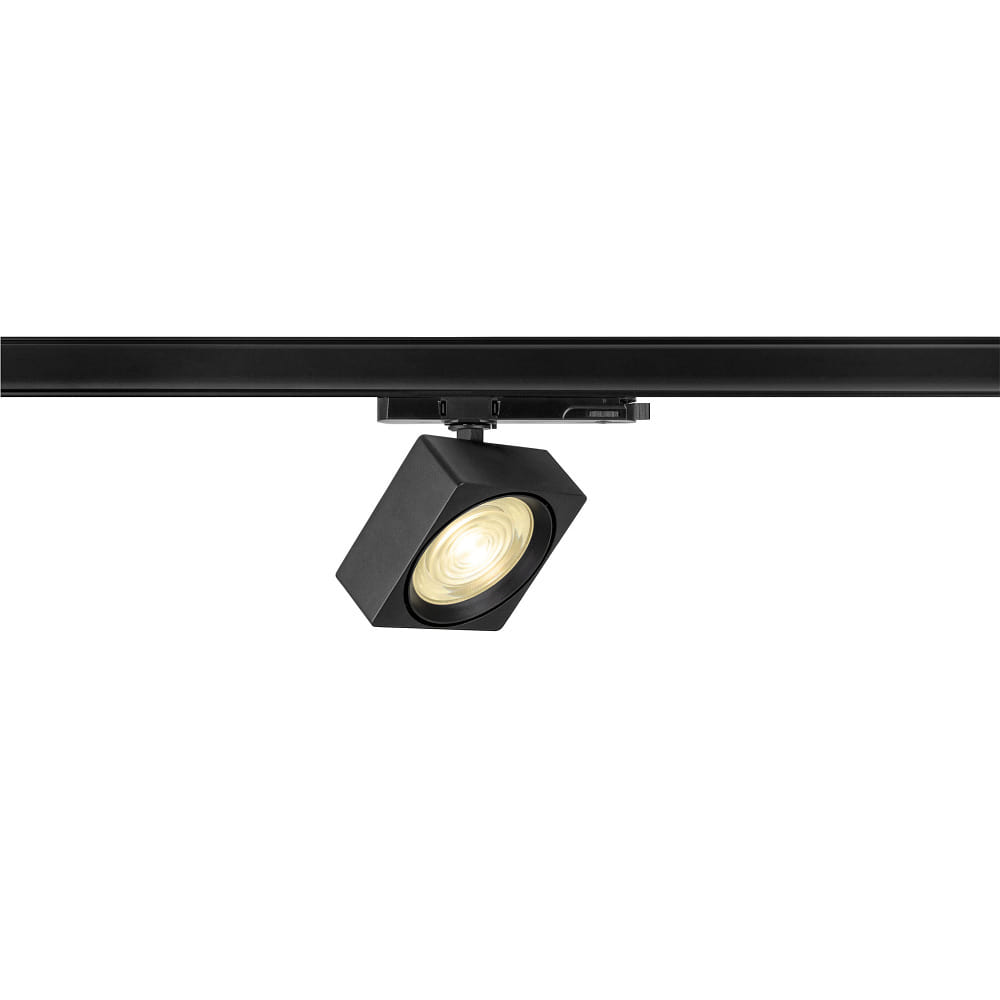

3-phase spot EURO CUBE 2 L PHASE flat, square, UGR < 19, cardanic IP20, black dimmable

SLV



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED 3-Phase Spotlight with Excellent Color Rendering

The LED 3-phase spotlight EURO CUBE 2 L PHASE from SLV impresses with its outstanding color rendering, featuring a CRI value of over 90Ra. This first-class color rendering ensures a natural and vivid representation of colors, especially skin tones, making it ideal for demanding lighting tasks. With a warm white light color of 3000K, the spotlight creates a pleasant and inviting atmosphere. The light output of 2750 lumens at only 21 watts power consumption guarantees efficient and bright illumination.

Innovative Design and Flexible Adjustment

The square and flat spotlight stands out with its modern black aluminum housing, which is not only visually appealing but also robust. Thanks to the gimbal construction, the light beam can be easily rotated and tilted to optimally align the 40° wide light cone. This allows the lighting to be precisely focused on the desired areas. With dimensions of only 11.2 x 14.5 x 15.8 cm, the spotlight is compact and unobtrusive.

Efficient Technology for Long Service Life

Equipped with an integrated passive heat sink, the spotlight ensures effective heat dissipation that extends the lifespan of the LEDs up to 50,000 hours. The high luminous efficacy of 130.95 lumens per watt makes the product particularly energy-efficient and sustainable. In addition, both the LED module and the electronically controlled driver are easily replaceable by qualified personnel, simplifying maintenance and further extending the service life.

Comfortable Dimming Function and Optimal Glare Control

The spotlight is phase-cut dimmable, meaning the brightness can be continuously adjusted to different needs. Additionally, the low UGR value of under 19 ensures glare-free lighting, which is also pleasant for screen workstations. This makes the EURO CUBE 2 L PHASE especially suitable for demanding environments where visual comfort and efficient illumination play an important role.

Practical Features and Easy Installation

The scope of delivery includes a 3-phase adapter and a driver, enabling straightforward integration into existing 3-phase track systems. Protection class 2 and a mains voltage of 220-240V ensure safe and stable operation. Weighing only 0.7 kg, the spotlight is easy to handle. Accessories such as 3-phase tracks, filters, or honeycomb filters are available separately and further expand the range of applications.

Colour:
black
Glass color:
clear
Reflector color:
silver

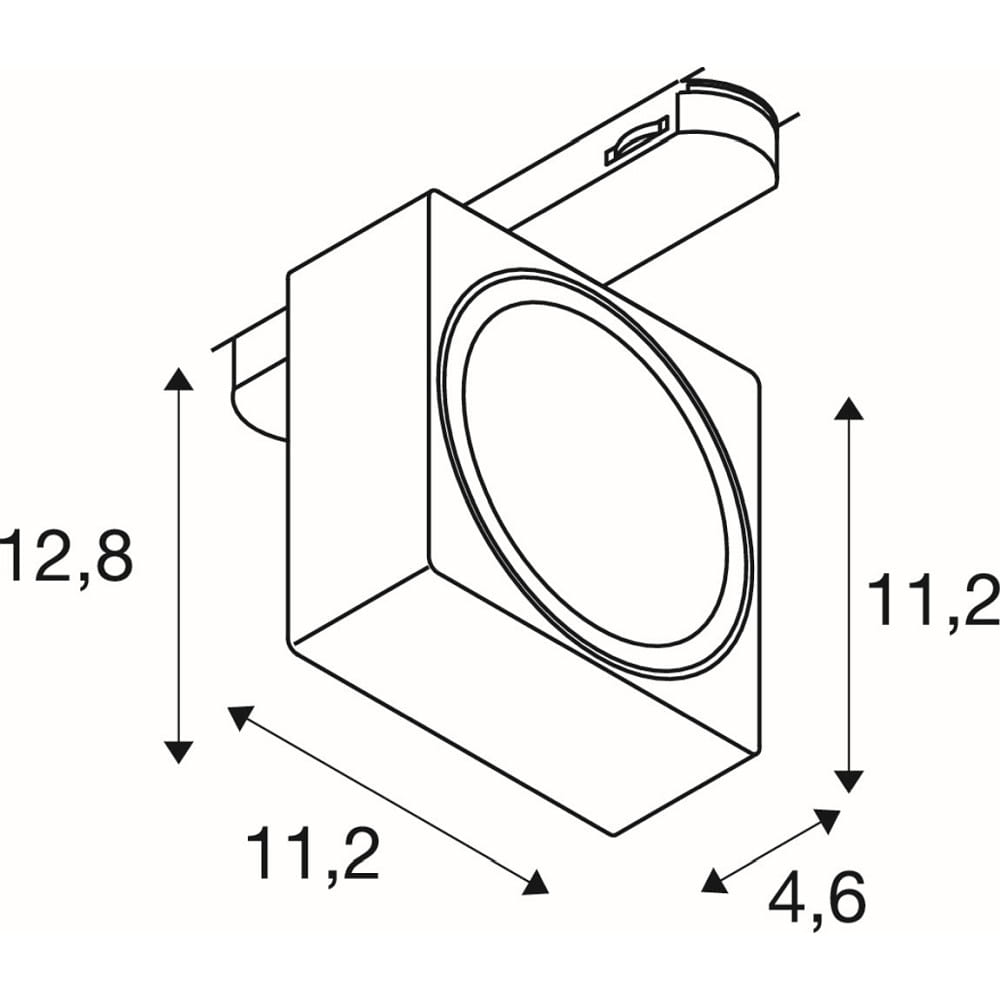

Dimension:
total-B∕ H∕ T: 11,2∕ 14,5∕ 15,8 cm
visible part-B∕ H∕ T: 11,2∕ 11,2∕ 15,8 cm
head-B∕ H∕ T: 11,2∕ 11,2∕ 4,6 cm
light output-Ø: 6,9 cm
adapter-T: 15,8 cm
Material:
aluminium
Weight:
0,7 kg
Product type:
3-phase spot
Accessories:
3-phase adapter - included in delivery
driver - included in delivery
3-phase track - not included in delivery
filter - not included in delivery
honeycomb filter - not included in delivery
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50/60 Hz
Power consumption:
21 W
Emitting angle:
40 °
Voltage:
3-phase adapter
Light colour:
warm white
Beam direction:
swivelling
Light flux:
2750 lm
Light yield:
130,95 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 Std.
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK02 up to 0.20 Joule
Protection class:
2
IP-protection class:
IP20
Additional information:
Notice for the end user: The light source of this luminaire may only be replaced by the manufacturer or by a service technician appointed by him.
System power: 28,5W
High color reproduction
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
D
Energy consumption:
21 kWh/1.000 h
Article number:
1010850
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
