LED driver EL-120-24V IP67 Dali, 0-120W, black, dimmable

High-Quality LED Driver for Versatile Applications

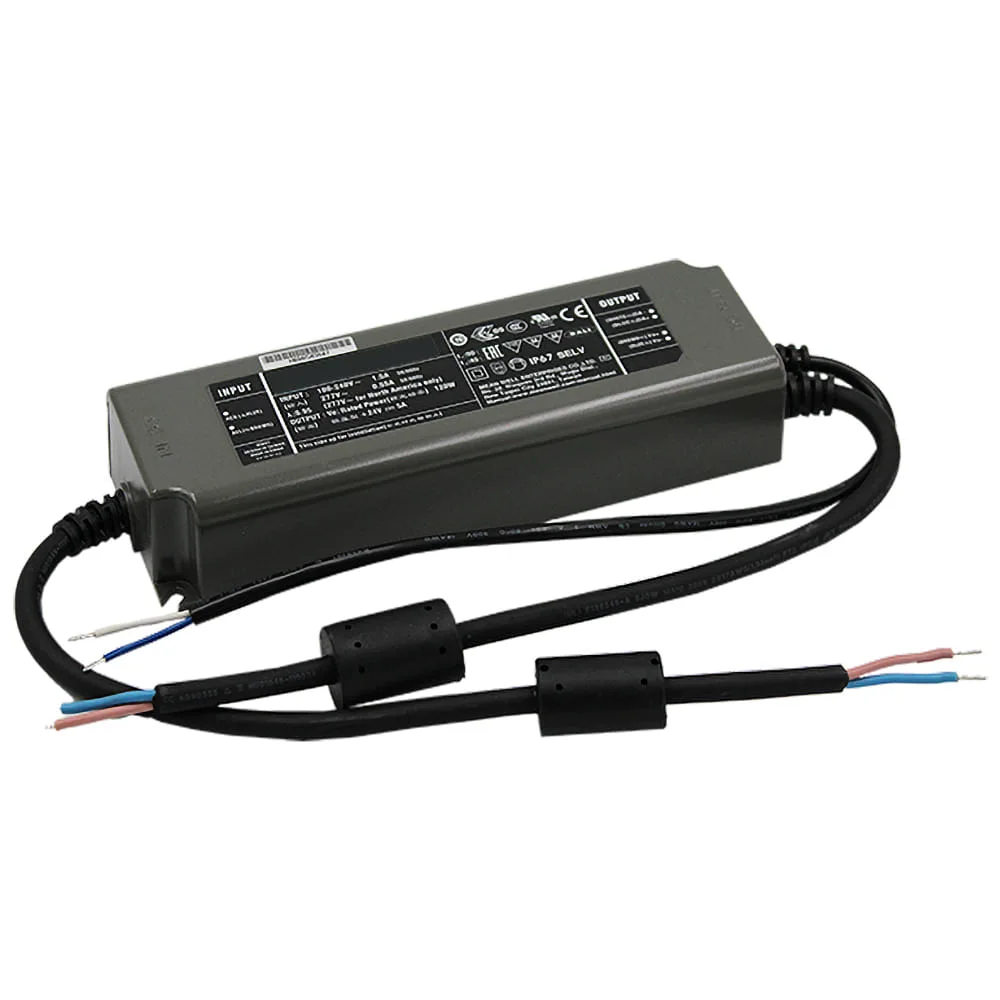

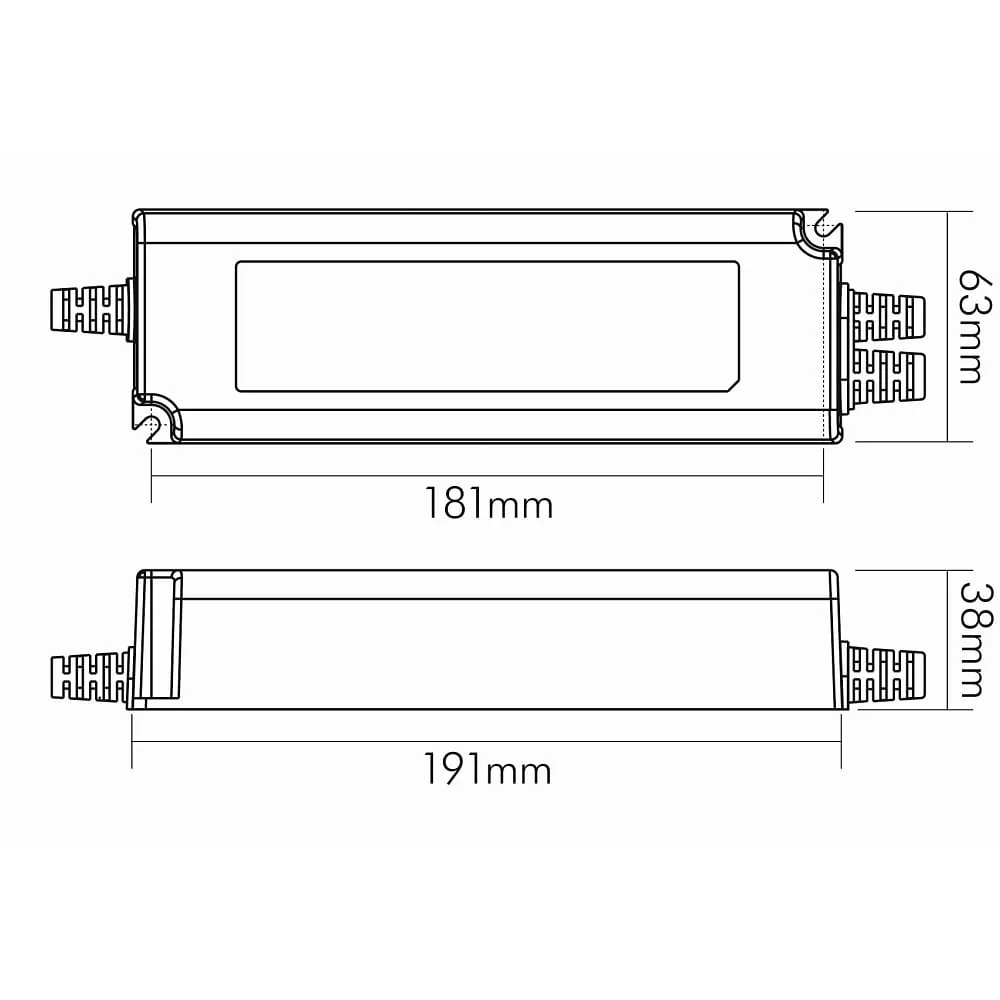

The outdoor LED driver EL-120-24V DALI from nobilé impresses with its robust design and versatile application possibilities. Designed for a power range from 0 to 120 watts, it reliably supplies LED light sources with an output voltage of 24 volts direct current. Thanks to the IP67 protection rating, the device is optimally protected against dust and water, ensuring a long service life. With dimensions of 19.1 x 6.3 x 3.75 cm and a weight of only 0.97 kg, the driver can be easily integrated into a wide variety of applications.

Intelligent DALI Dimming Function for Modern Lighting Concepts

The driver is equipped with a DALI interface that enables digital and stepless dimming. This function makes it particularly suitable for modern building automation systems where individual light control is required. The DALI technology ensures easy integration into existing systems and allows flexible adjustment of light intensity, contributing to energy savings and a pleasant indoor climate.

Reliable Protection and High Efficiency

The power supply features comprehensive safety mechanisms such as temperature protection up to 110 °C, overload protection, and short-circuit protection. These protection mechanisms guarantee safe operation even under demanding conditions. With a typical efficiency of 90% at full load, the driver operates particularly energy-efficiently, reducing power consumption and lowering operating costs. The power factor is over 0.96, indicating high-quality workmanship and optimal electrical properties.

Easy Installation and Connection Options

Installation of the driver is carried out by qualified electrical personnel according to VDE 0100. The device is designed for flush mounting and features long connection cables of 300 cm length each on the primary and secondary sides, offering flexible connection options. The open cable ends facilitate integration into existing electrical systems. The housing combines plastic and metal to ensure a stable and durable construction.

Extensive Certifications and Technical Data

The LED driver is certified according to ENEC 05, CB, and RU, which stands for high quality and safety standards. It operates with an input voltage from 90 to 431 volts and a maximum rated current of 650 mA at 230 volts AC. The maximum rated current on the secondary side is 5000 mA, ensuring reliable supply even for high-power LED systems. The ambient temperature range from -40 to +90 °C makes the device very resistant to temperature fluctuations.
