LED power supply EL-200-24V IP67 with open cable, voltage constant, switchable, silver

High-Quality LED Driver with Robust Construction

The outdoor LED driver from Mean Well impresses with its durable and sturdy design. It features a metal housing that provides additional protection and stability. Weighing only 0.85 kg, the device is compact yet robustly built. The silver color and elegant design make the driver a professional solution for a wide range of lighting requirements.

Technical Details and Performance

This LED power supply operates with an input voltage of 100 to 305 volts AC and delivers a constant secondary voltage of 24 volts DC. The power consumption ranges from 0 to 199 watts, making it suitable for various LED systems. The mains frequency is 47 to 63 hertz, allowing flexible use. The maximum case temperature (Tc) is 90 °C, ensuring safe and reliable operation.

Excellent Protection Class and IP67 Certification

With protection class 1 and IP67 certification, the driver guarantees very high protection against dust and water. The IP67 rating means the device is completely dust-tight and protected against temporary immersion. This ensures safe operation under demanding conditions and protects the electronics from environmental influences.

Practical Connection Options and Accessories

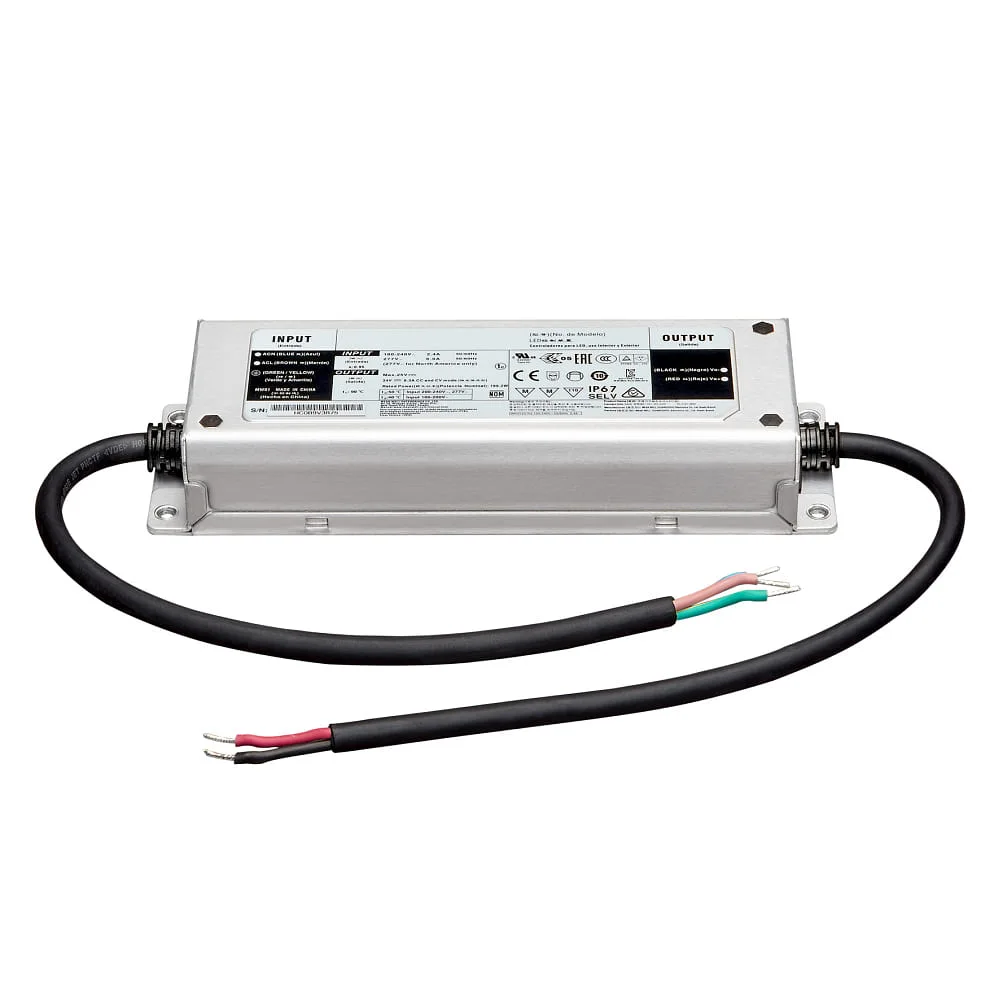

The LED driver is equipped with 300 cm long connection cables on both the primary and secondary sides. The primary side features a 3-pin 17AWG cable, while the secondary side has a 2-pin 17AWG cable. These open cable ends facilitate installation and connection to various systems. All necessary connection and coupling cables are included in the scope of delivery, enabling immediate use.

Optimal Dimensions and Versatile Applications

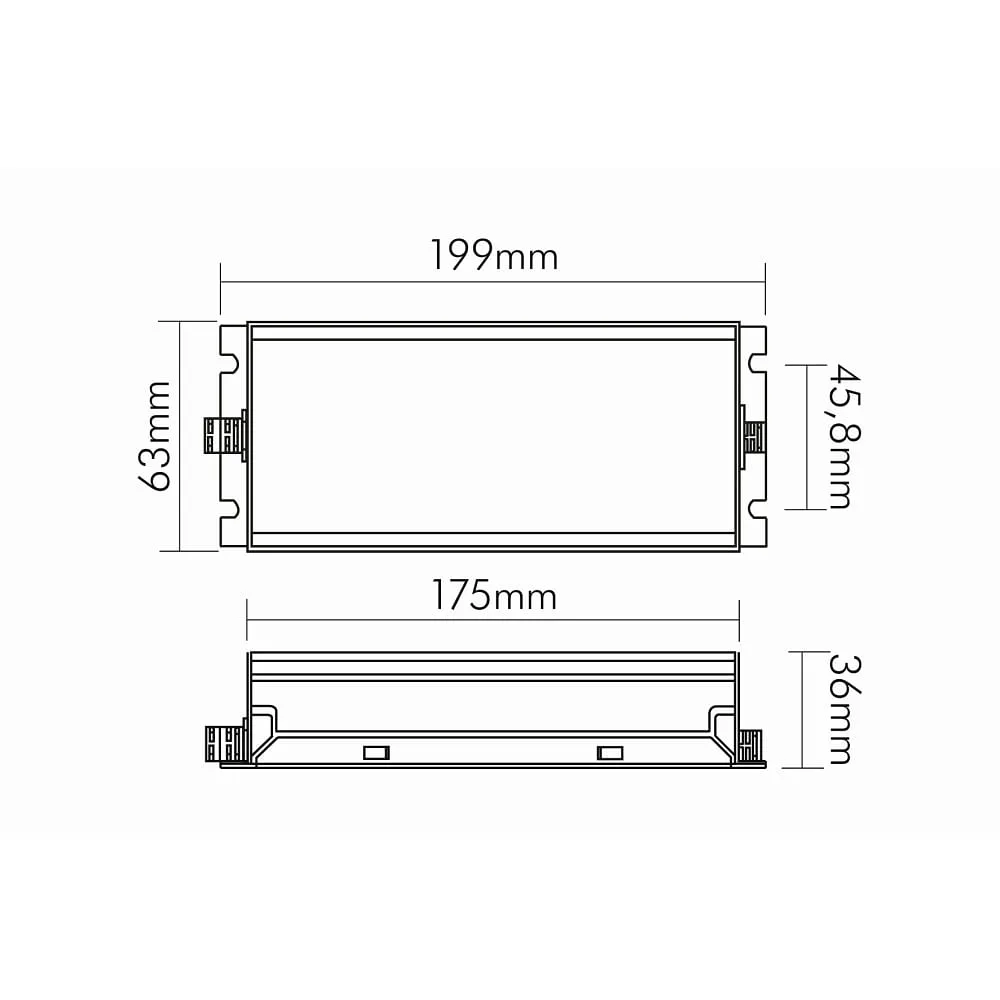

With compact dimensions of 19.9 cm length, 6.3 cm width, and 3.6 cm height, the driver fits easily into a variety of installation scenarios. It is available in different power ratings, allowing it to be tailored to your specific requirements. This professional LED power supply is an ideal choice when you seek reliable and efficient power for your LED systems.
