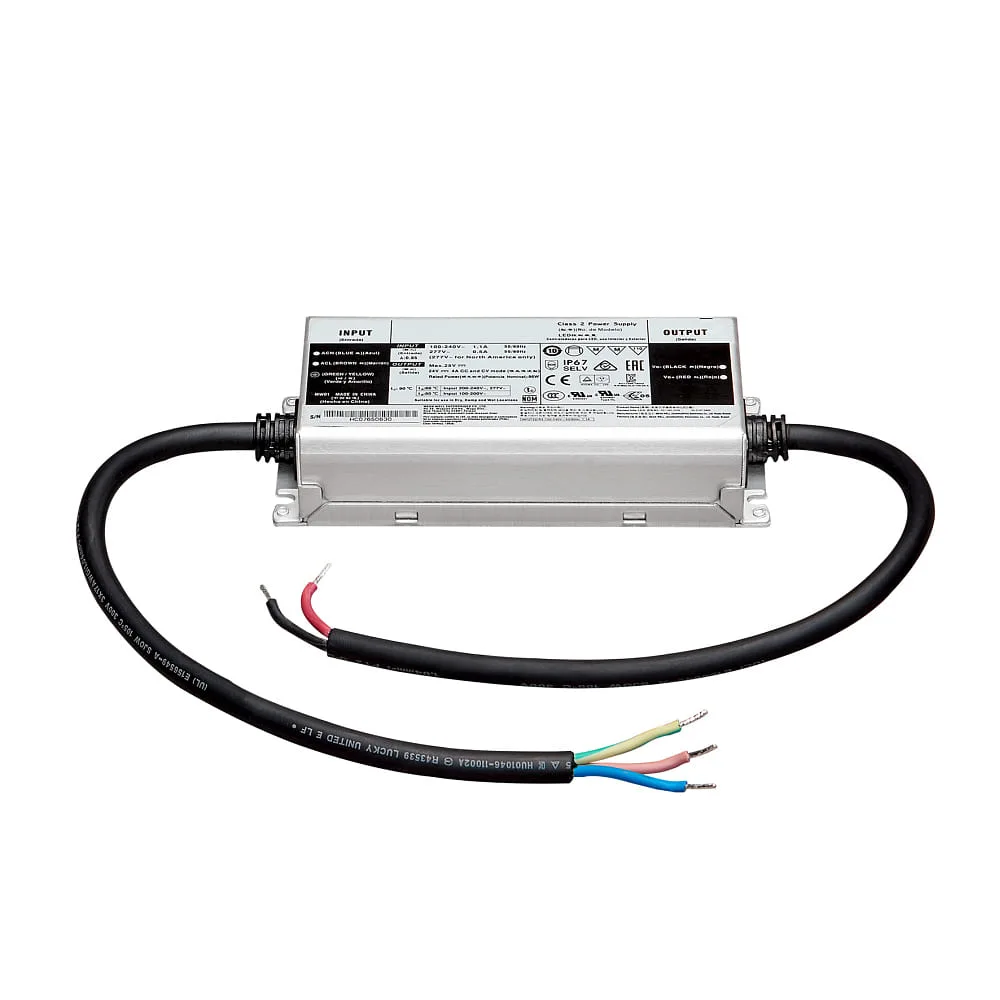

LED power supply EL-96-24V IP67 with open cable, voltage constant, switchable, silver

High-Quality LED Driver with Robust Construction

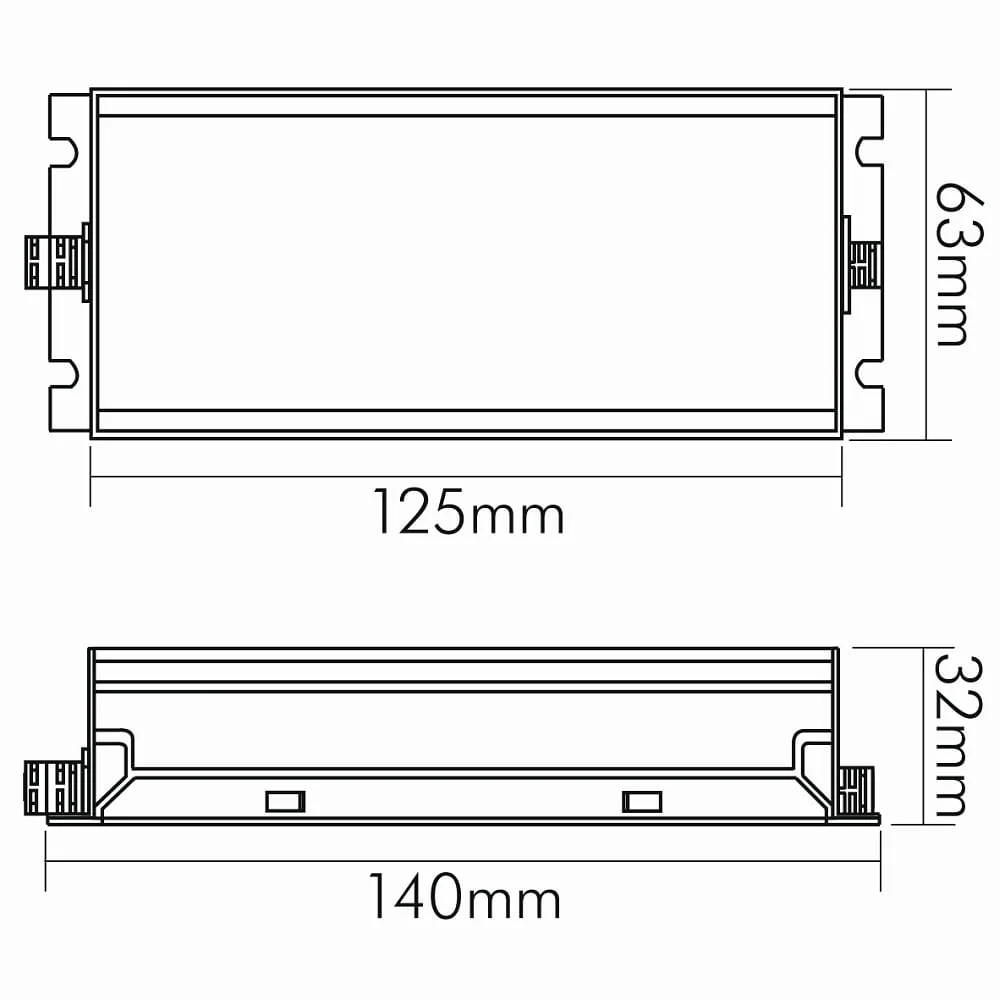

The outdoor LED driver from Mean Well impresses with its sturdy metal housing and high-quality workmanship. With dimensions of 14 x 6.3 x 3.2 cm, it offers a compact design that is easy to integrate. The silver color gives the device a modern look that blends seamlessly into various environments. Despite its low weight of only 0.535 kg, the power supply convinces with its stability and durability.

Reliable Performance and Versatile Connection Options

The LED power supply operates with an input voltage of 100 to 305 volts AC and delivers a constant output voltage of 24 volts DC. It is designed for LED lamps with a power of up to 96 watts and draws a maximum current of 0.5 amperes. Particularly practical are the two 300 cm long connection cables with open ends, allowing flexible installation. The primary cable is 3-pin, while the secondary cable is 2-pin.

High-Level Protection and Safety

The driver has an IP67 protection rating, ensuring reliable protection against dust and temporary immersion in water. Additionally, the device features an integrated short-circuit window fuse transformer and protects itself in case of faults at temperatures above 110 degrees Celsius. These safety measures enhance operational reliability and prevent damage to the device and connected lamps.

Flexibility Through Variable Power Levels and Accessories

The LED driver is available in different power levels, allowing it to be optimally adapted to various lighting requirements. The scope of delivery includes both connection cables and extension cables, enabling easy and fast commissioning. Protection class 1 ensures safe grounding and increases protection against electrical hazards during operation.

Technically Advanced Solution for Consistent Lighting Quality

The Mean Well LED power supply delivers a constant 24-volt DC voltage, which is especially suitable for LED lights. The mains frequency of 47 to 63 Hz ensures reliable operation in various power grids. The temperature resistance from -40 to +60 degrees Celsius makes the driver versatile for use. Additionally, the maximum operating temperature (Tc) of 90 degrees Celsius ensures safe and efficient operation even under demanding conditions.
